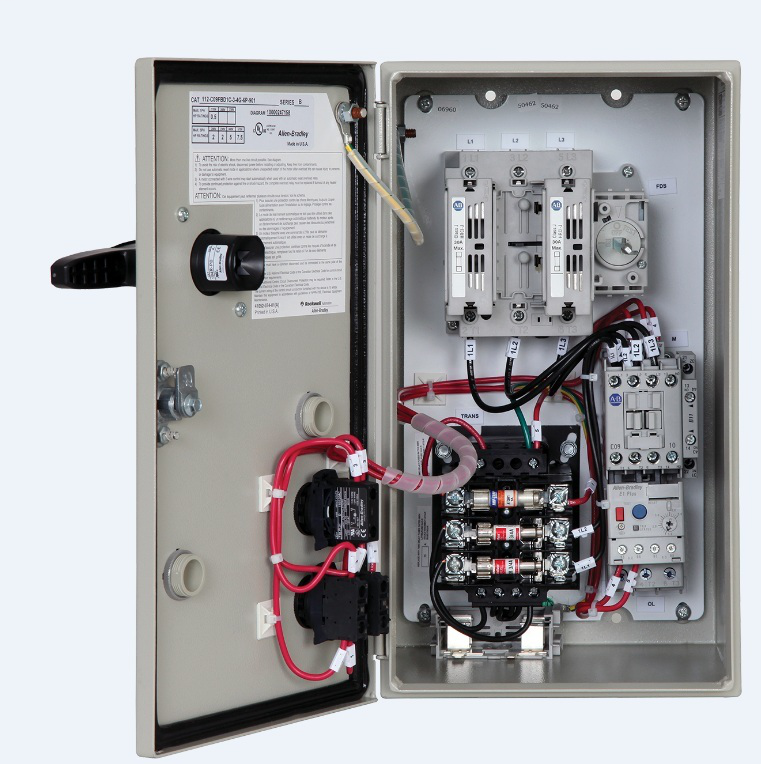

A-B 112-C09FBDD1C-3 Fusible Disconn
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 112-C09FBDD1C-3
North Coast Part # 1831324


  • Max. Hp, 575V (60Hz) Three-Phase: 7-1/2
  • Amperage Rating: 9 A


  • Factory or User Assembled?: Factory Assembled

System Voltage Data

  • Supply Voltage: 480V 60Hz
  • Phases: Three Phase

Starter Data

  • Disconnect Type: Fusible -ClassJ
  • Contactor Size: 9 A
  • Enclosure Type: NEMA Type 3/4/12 - IP66 (Metal)
  • Coil Voltage: 120V 60Hz

Overload Relay Data

  • Overload Relay: Three Phase Solid State Overload Relay
  • Full Load Current Range: 1.0 - 5.0 Amps


  • Factory Installed Modifications: HAND-OFF-AUTO Selector Switch


UPC 61259842933
GTiN 00612598429332
Coil Voltage 120 V
Family Brand Name Allen Bradley
NEMA 12,3,4
Number of Phases 3 Phase
Disconnect Type Fusible-Class J
Amperage 9 Amp
IP Rating IP66
Contactor Size 9 A
Type Non-Reversing, Combination
Material Sheet Metal
Control Voltage 480/120 V
Enclosure Type Type 3/4/12, Watertight, Dusttight
Contact Configuration 1 NO Auxiliary
Blade Dimensions 200 mm W x 200 mm D x 350 mm H
Trip Class Class 10
