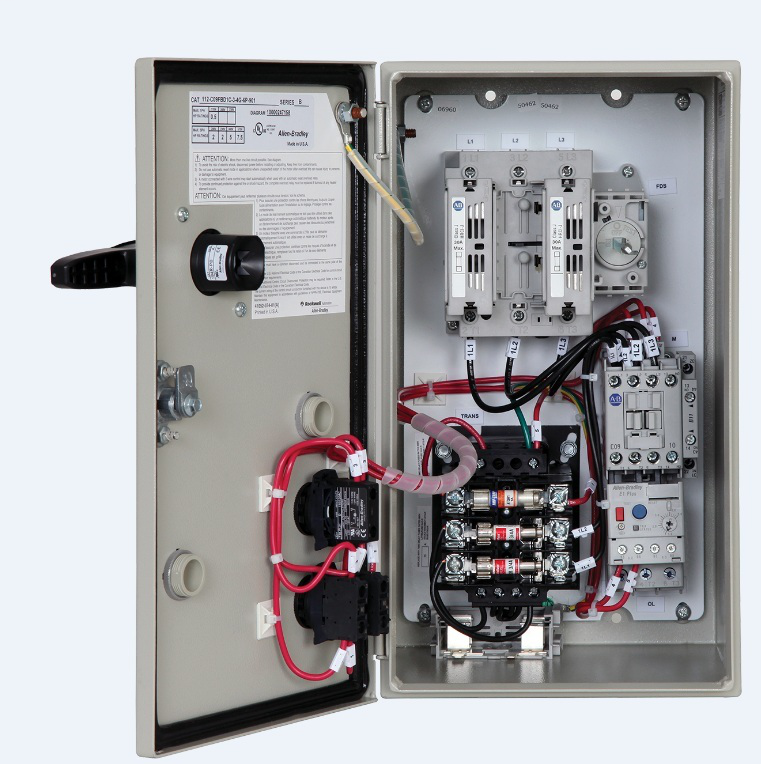

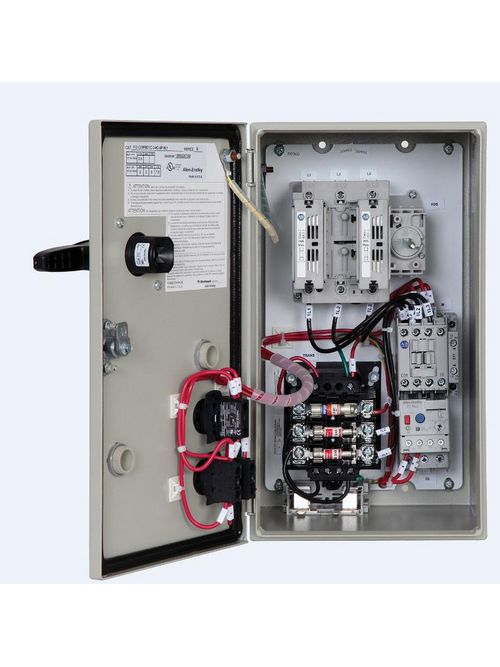

A-B 112-C12ABDXXX Fusible Disconnec
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$982.54/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 112-C12ABDXXX
North Coast Part # 757124

Specifications

  • Max. Hp, 460V (60Hz) Three-Phase: 7-1/2
  • Max. Hp, 575V (60Hz) Three-Phase: 10
  • Max. kW, 400/415V (50Hz) Three-Phase: 5.5
  • Max. kW, 500V (50Hz) Three-Phase: 5.5
  • Max. kW, 690V (50Hz) Three-Phase: 5.5
  • Amperage Rating: 12 A

Assembly

  • Factory or User Assembled?: Factory Assembled

System Voltage Data

  • Supply Voltage: 480V 60Hz
  • Phases: Three Phase

Starter Data

  • Disconnect Type: Fusible -ClassJ
  • Contactor Size: 12 A
  • Enclosure Type: NEMA Type 1 - IP42 (Metal)
  • Coil Voltage: 120V 60Hz

Overload Relay Data

  • Overload Relay: Provision for Overload Relay
  • Full Load Current Range: n/a

Overview

UPC 78118060063
Item Long Description Fusible Disconnect Combination Starter
GTiN 00781180600630
Coil Voltage 460 - 480 VAC at 60 Hz, 120 VAC at 60 Hz
Family Brand Name Allen Bradley
NEMA 1
Number of Phases 3 Phase
Disconnect Type Fusible-Class J
Amperage 12 Amp
IP Rating IP42
Contactor Size 12 A
Type Compact, Separate Control, Fusible Disconnect
Material Sheet Metal
Applications Designed to Provide the Disconnecting Means, Short-Circuit Protection (with Suitable Fuses), Control and Overload Protection for Three-Phase Squirrel-Cage Motors
Blade Dimensions 200 mm W x 200 mm D x 350 mm H
