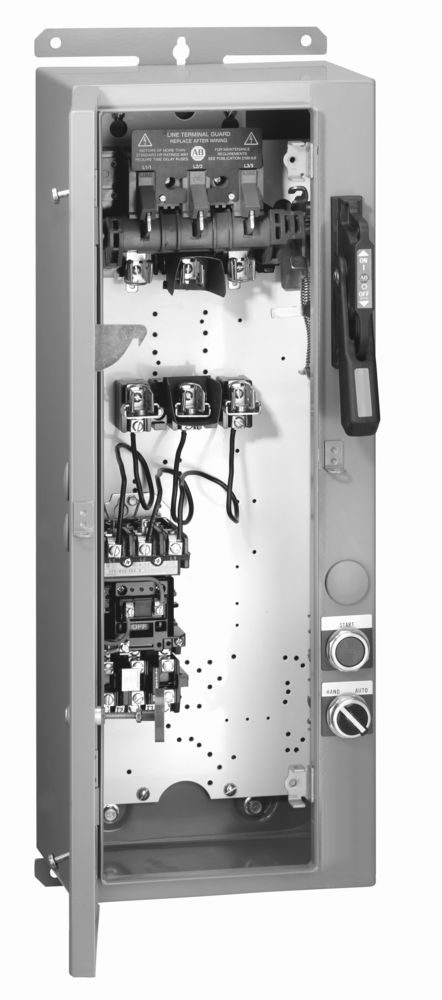

A-B 1232-CNB-A2J-25R NEMA Size 2 Sl
Product image thumbnail 0
Product image thumbnail 1
$3,288.76/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 1232-CNB-A2J-25R
North Coast Part # 1497762

Features

  • Includes service entrance rating
  • Offers Type 3R painted metal narrow enclosures or enclosures with extra space
  • Offers option of eutectic or electronic overload relays
  • Includes NEMA starter sizes 1...6 (7 and 8 available through MIC)
  • Offers field installed accessories
  • Includes factory-installed modifications

Specifications

  • Continuous Ampere Rating: 45 A

Motor Data

  • Line Voltage: 460V 60Hz

Starter Data

  • NEMA Size: NEMA 2
  • Enclosure: Type 3R - Enclosure Code "N"- Pump Panel
  • Control Voltage: 480V 60Hz

Disconnect Data

  • Disconnect Type: Fusible
  • Fuse Clips: 60A Class R

Options

  • Overload Relay: E1 Plus Solid State

Important Information

  • Enclosure Size [length x width x depth]: 27 x 10 x 8 in.

Categories

Overview

GTiN 00612598521258
Size Size 2
Type Slim Line, Fusible
Control Voltage 480 V
Family Brand Name Allen Bradley
NEMA 2
Number of Phases 3 Phase
Enclosure Type Rainproof
Disconnect Type Fusible
Amperage 45 Amp
Product UPC 61259852125
Material Metal
Coil Voltage 480 V
Blade Dimensions 27 in L x 10 in W x 8 in D
Trip Class Class 20
Number of Poles 3 Pole
Fuse Type 60 A Class R
Nema Size NEMA 2
