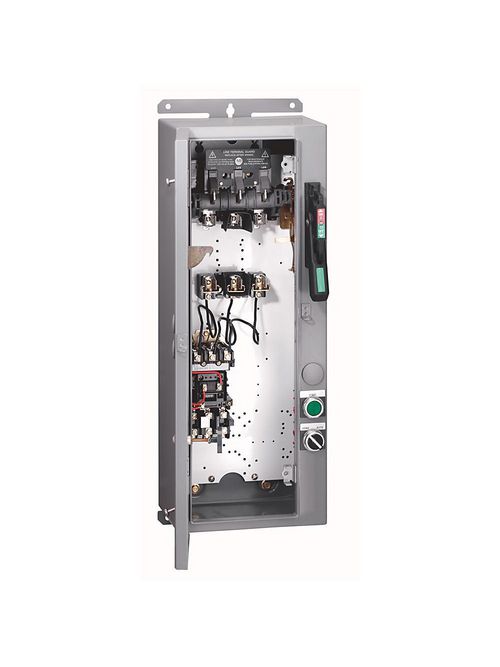

A-B 1232-DNA-A2L-26R NEMA Size 3 Sl
Product image thumbnail 0
Product image thumbnail 1
$5,232.89/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 1232-DNA-A2L-26R
North Coast Part # 1435032

Features

  • Includes factory-installed modifications
  • Offers Type 3R painted metal narrow enclosures or enclosures with extra space
  • Offers option of eutectic or electronic overload relays
  • Includes NEMA starter sizes 1...6 (7 and 8 available through MIC)
  • Includes service entrance rating
  • Offers field installed accessories

Specifications

  • Continuous Ampere Rating: 90 A

Motor Data

  • Line Voltage: 230V 60Hz

Starter Data

  • NEMA Size: NEMA 3
  • Enclosure: Type 3R - Enclosure Code "N"- Pump Panel
  • Control Voltage: 240V 60Hz

Disconnect Data

  • Disconnect Type: Fusible
  • Fuse Clips: 100A Class R

Options

  • Overload Relay: E1 Plus Solid State

Important Information

  • Enclosure Size [length x width x depth]: 30 x 20 x 9 in.

Overview

UPC 61259853182
GTiN 00612598531820
Size Size 3
Type Slim Line, Fusible
Control Voltage 240 V
Family Brand Name Allen Bradley
NEMA 3
Number of Phases 3 Phase
Enclosure Type Rainproof
Disconnect Type Fusible
Amperage 90 Amp
Material Painted Metal Enclosure
Coil Voltage 240 V
Blade Dimensions 30 in L x 20 in W x 9 in H
Trip Class Class 20
Number of Poles 3 Pole
Color Green
Fuse Type 100 A Class R
Nema Size NEMA 3
