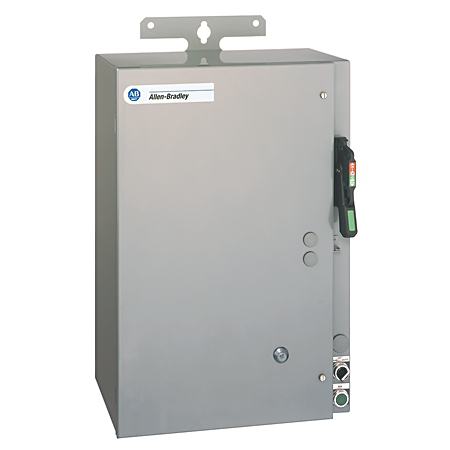

A-B 1233X-CNBD-A2G-42 NEMA Extra Sp
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3,769.55/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 1233X-CNBD-A2G-42
North Coast Part # 1497765

Specifications

  • Size: NEMA 2
  • Continuous Ampere Rating: 45 A
  • Motor Power: 15 HP

Assembly

  • Factory or User Assembled?: Factory Assembled

Motor Data

  • Line Voltage: 460V 60Hz

Starter Data

  • Horsepower: 15 HP
  • NEMA Size: NEMA 2
  • Enclosure: Type 3R - Enclosure Code "N"- Pump Panel
  • Control Voltage: 120V 60Hz

Circuit Breaker Data

  • Horsepower Code: 15 HP (Motor Protection)
  • Circuit Breaker Type: Instantaneous Trip, Standard

Options

  • Overload Relay: E1 Plus Solid State

Important Information

  • Enclosure Size [length x width x depth]: 30 x 20 x 8 in.

Overview

UPC 88717266886
Item Long Description NEMA Extra Space Pump Panel Ckt-bkr
GTiN 00887172668869
Size Size 2
Type E1 Plus Solid State Relay
Horsepower 15 hp
Control Voltage 120 V
Family Brand Name Allen Bradley
NEMA 2
Circuit Breaker Type Instantaneous Trip - Standard
Enclosure Type NEMA 3R Rainproof
Disconnect Type No Disconnect Type
Amperage 45 Amp
Material Metal
Temperature Rating -25 to 55 C
Blade Dimensions 20-1/2 in W x 8.72 in D x 30 in H
