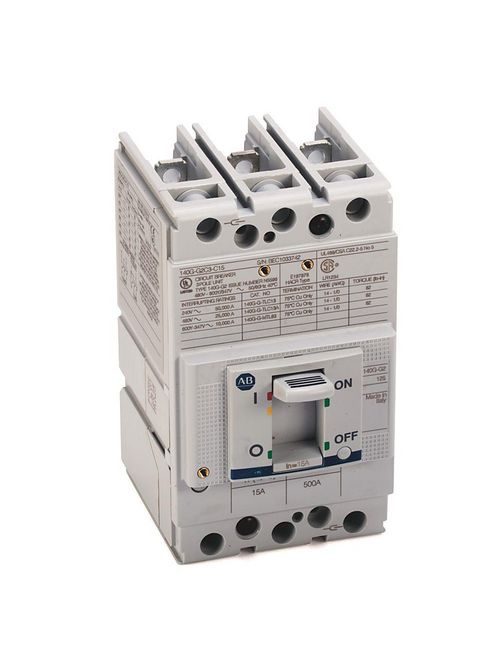

Allen-Bradley 140G-G2C3-C90 125 Amp Frame Molded Case Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
$549.33/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 140G-G2C3-C90
North Coast Part # 997211

Features

  • Offers a wide range of accessories for global availability
  • Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
  • Provides greater customization in trip units
  • Offers a wide range of operating mechanisms to fit a variety of panel configurations

Specifications

  • Bulletin Number: 140G - Molded Case Circuit Breaker
  • Frame/Rating: G Frame (125 A)
  • Interrupting Rating, 50/60 Hz, 240V (kA): 50
  • Interrupting Rating, 50/60 Hz, 480V (kA): 25
  • Interrupting Rating, 50/60 Hz, 600V (kA): 10
  • Breaking Capacity, 50/60 Hz, 220V (kA): 65
  • Breaking Capacity, 50/60 Hz, 415V (kA): 36
  • Breaking Capacity, 50/60 Hz, 440V (kA): 36

Circuit Breaker Data

  • Device Type: 140G - Molded Case Circuit Breaker
  • Number of Poles: 3 Poles
  • Frame Size: G frame
  • Rated Current(A): 90 A
  • Protection: T/M - Thermal Magnetic

Manufacturing

  • Assembly: Factory Assembled

Overview

UPC 88563044690
GTiN 00885630446905
Type Molded Case Circuit Breaker
Family Brand Name Allen Bradley
Frame G, 125 A
Current 90 A
Trip Type Fixed Thermal/Fixed Magnetic
Number of Poles 3 Pole
Load Rating 90A
Interrupt Rating 36 kA at 415 V, 25 kA at 480 V
Sub Brand 140G
Standard C-TICK,CCC
