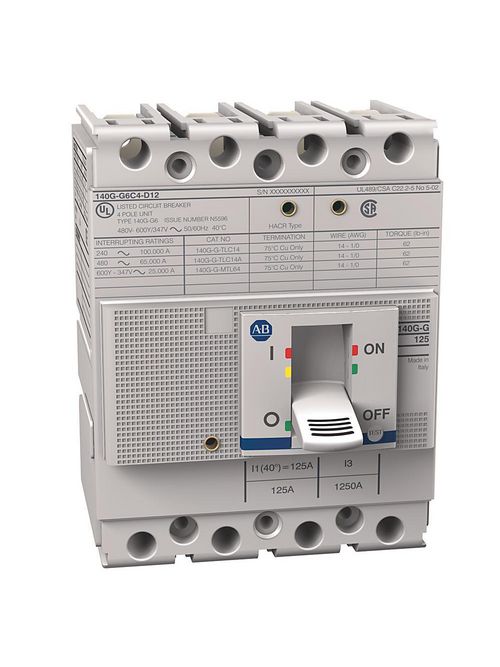

A-B 140G-G3C4-C20 140G 125A Frame M
Product image thumbnail 0
Product image thumbnail 1
$769.88/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 140G-G3C4-C20
North Coast Part # 1557335

Features

  • Provides greater customization in trip units
  • Offers a wide range of accessories for global availability
  • Offers a wide range of operating mechanisms to fit a variety of panel configurations
  • Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity

Specifications

  • Bulletin Number: 140G - Molded Case Circuit Breaker
  • Frame/Rating: G Frame (125 A)
  • Interrupting Rating, 50/60 Hz, 240V (kA): 65
  • Interrupting Rating, 50/60 Hz, 480V (kA): 35
  • Interrupting Rating, 50/60 Hz, 600V (kA): 14
  • Breaking Capacity, 50/60 Hz, 220V (kA): 85
  • Breaking Capacity, 50/60 Hz, 415V (kA): 50
  • Breaking Capacity, 50/60 Hz, 440V (kA): 50

Circuit Breaker Data

  • Device Type: 140G - Molded Case Circuit Breaker
  • Number of Poles: 4 Poles
  • Frame Size: G frame
  • Rated Current(A): 20 A
  • Protection: T/M - Thermal Magnetic

Manufacturing

  • Assembly: Factory Assembled

Overview

UPC 88563044645
GTiN 00885630446455
Type Molded Case Circuit Breaker
Family Brand Name Allen Bradley
Current 20 A
Number of Poles 4 Pole
Sub Brand 140G
Frame G, 125 A
Trip Type Thermal/Fixed Magnetic
Interrupt Rating 50 kA at 415 V, 35 kA at 480 V
Standard CCC
Certifications CCC,CE,CSA Certified,UL Listed
