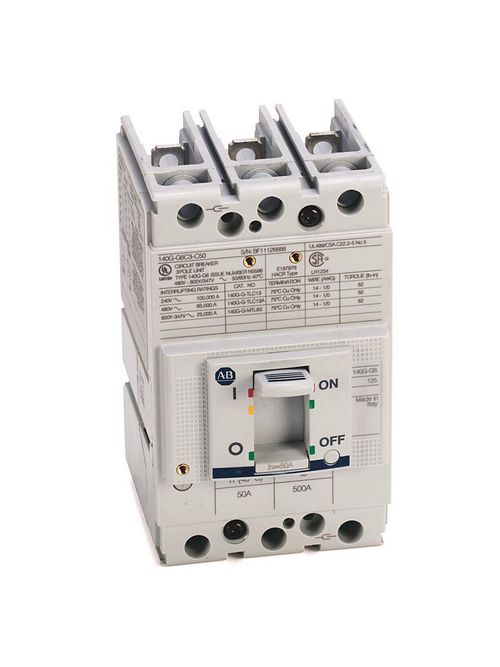

Allen Bradley 140G-G6C3-C40 125 Amp G-Frame Molded Case Circuit Breaker
$781.95/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 140G-G6C3-C40
North Coast Part # 998371

Specifications

  • Bulletin Number: 140G - Molded Case Circuit Breaker
  • Frame/Rating: G Frame (125 A)
  • Interrupting Rating, 50/60 Hz, 240V (kA): 100
  • Interrupting Rating, 50/60 Hz, 480V (kA): 65
  • Interrupting Rating, 50/60 Hz, 600V (kA): 25
  • Breaking Capacity, 50/60 Hz, 220V (kA): 100
  • Breaking Capacity, 50/60 Hz, 415V (kA): 70
  • Breaking Capacity, 50/60 Hz, 440V (kA): 65
  • Breaking Capacity, 50/60 Hz, 690V (kA): 10

Circuit Breaker Data

  • Device Type: 140G - Molded Case Circuit Breaker
  • Number of Poles: 3 Poles
  • Frame Size: G frame
  • Rated Current(A): 40 A
  • Protection: T/M - Thermal Magnetic

Manufacturing

  • Assembly: Factory Assembled

Features

  • Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
  • Offers a wide range of accessories for global availability
  • Provides greater customization in trip units
  • Offers a wide range of operating mechanisms to fit a variety of panel configurations

Overview

UPC 88563044621
GTiN 00885630446219
Type Molded Case Circuit Breaker
Family Brand Name Allen Bradley
Frame G, 125 A
Current 40 A
Number of Poles 3 Pole
Load Rating 40A
Sub Brand 140G
Trip Type Thermal/Fixed Magnetic
Interrupt Rating 70 kA at 415 V, 65 kA at 480 V
