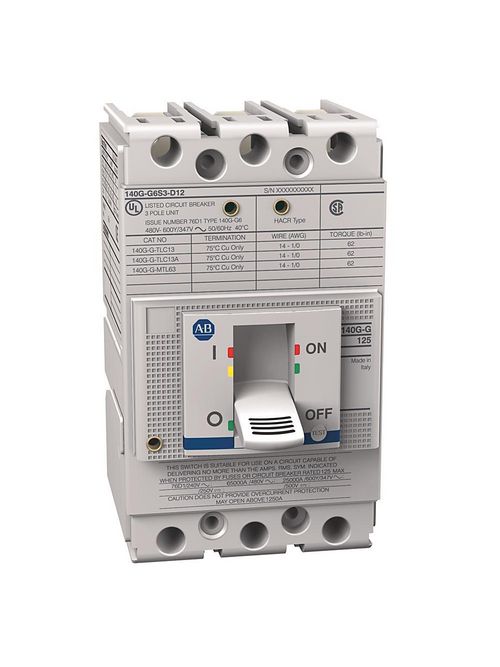

A-B 140G-G6S3-D12 140G 125A Frame M
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,255.47/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 140G-G6S3-D12
North Coast Part # 1095424

Features

  • Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
  • Offers a wide range of operating mechanisms to fit a variety of panel configurations
  • Offers a wide range of accessories for global availability
  • Provides greater customization in trip units

Specifications

  • Bulletin Number: 140G - Molded Case Switch
  • Frame/Rating: G Frame (125 A)
  • Interrupting Rating, 50/60 Hz, 240V (kA): 100
  • Interrupting Rating, 50/60 Hz, 480V (kA): 65
  • Interrupting Rating, 50/60 Hz, 600V (kA): 25
  • Breaking Capacity, 50/60 Hz, 220V (kA): 100
  • Breaking Capacity, 50/60 Hz, 415V (kA): 70
  • Breaking Capacity, 50/60 Hz, 440V (kA): 65
  • Breaking Capacity, 50/60 Hz, 690V (kA): 10

Circuit Breaker Data

  • Device Type: 140G - Molded Case Switch
  • Number of Poles: 3 Poles
  • Frame Size: G frame
  • Rated Current(A): 125 A
  • Protection: Molded Case Switch (Isolator)

Manufacturing

  • Assembly: Factory Assembled

Overview

UPC 88563044165
Item Long Description 140G 125A Frame Molded Case Switch
GTiN 00885630441658
Type Isolator
Family Brand Name Allen Bradley
Frame G, 125 A
Current 125 A
Number of Poles 3 Pole
Sub Brand 140G
Trip Type Magnetic
Interrupt Rating 70 kA at 415 V, 65 kA at 480 V
Trip Range 1250 A
Standard CCC
