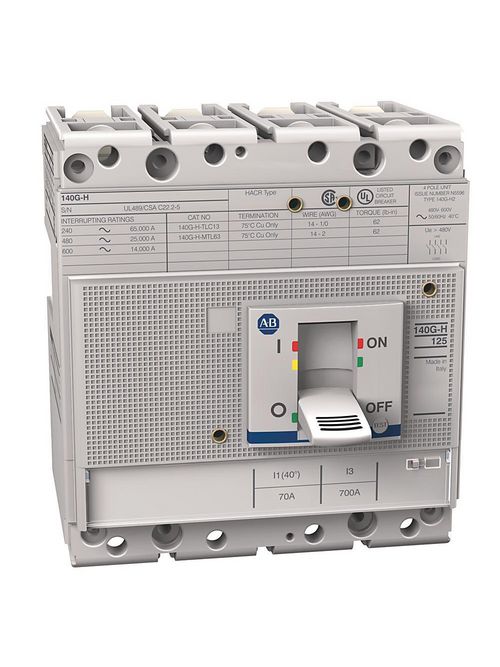

A-B 140G-H2C4-C25 140G 125A Frame M

Features

• Offers a wide range of accessories for global availability
• Provides greater customization in trip units
• Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
• Offers a wide range of operating mechanisms to fit a variety of panel configurations

Specifications

• Bulletin Number: 140G - Molded Case Circuit Breaker
• Frame/Rating: H Frame (125 A)
• Interrupting Rating, 50/60 Hz, 240V (kA): 65
• Interrupting Rating, 50/60 Hz, 480V (kA): 25
• Interrupting Rating, 50/60 Hz, 600V (kA): 14
• Breaking Capacity, 50/60 Hz, 220V (kA): 65
• Breaking Capacity, 50/60 Hz, 415V (kA): 36
• Breaking Capacity, 50/60 Hz, 440V (kA): 36
• Breaking Capacity, 50/60 Hz, 690V (kA): 10

Circuit Breaker Data

• Device Type: 140G - Molded Case Circuit Breaker
• Number of Poles: 4 Poles
• Frame Size: H frame
• Rated Current(A): 25 A
• Protection: T/M - Thermal Magnetic

Manufacturing

• Assembly: Factory Assembled
