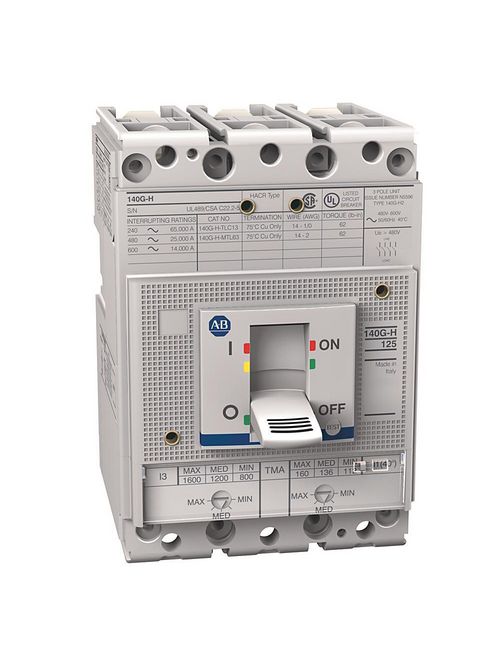

Allen Bradley 140G-H2F3-D11 125 Amp H-Frame Molded Case Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$811.36/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 140G-H2F3-D11
North Coast Part # 997269

Features

  • Offers a wide range of accessories for global availability
  • Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
  • Provides greater customization in trip units
  • Offers a wide range of operating mechanisms to fit a variety of panel configurations

Specifications

  • Bulletin Number: 140G - Molded Case Circuit Breaker
  • Frame/Rating: H Frame (125 A)
  • Interrupting Rating, 50/60 Hz, 240V (kA): 65
  • Interrupting Rating, 50/60 Hz, 480V (kA): 25
  • Interrupting Rating, 50/60 Hz, 600V (kA): 14
  • Breaking Capacity, 50/60 Hz, 220V (kA): 65
  • Breaking Capacity, 50/60 Hz, 415V (kA): 36
  • Breaking Capacity, 50/60 Hz, 440V (kA): 36
  • Breaking Capacity, 50/60 Hz, 690V (kA): 10

Circuit Breaker Data

  • Device Type: 140G - Molded Case Circuit Breaker
  • Number of Poles: 3 Poles
  • Frame Size: H frame
  • Rated Current(A): 110 A
  • Protection: T/M - Thermal Magnetic

Manufacturing

  • Assembly: Factory Assembled

Categories

Overview

UPC 88717232285
Item Long Description 140G 125A H Frame Molded Case Ckt-Bkr
GTiN 00887172322853
Type Global
Family Brand Name Allen Bradley
Frame H, 125 A
Current 110 A
Trip Type Adjustable Thermal/Adjustable Magnetic
Number of Poles 3 Pole
Interrupt Rating 25 kA
Trip Range 77 - 110 A Thermal, 550 - 1100 A Magnetic
Applications For Line Protection of Control Panels
Temperature Rating 104 F Ambient
Blade Dimensions 90 mm W x 82.5 mm D x 130 mm H
Environmental Conditions -40 to 176 F Storage
