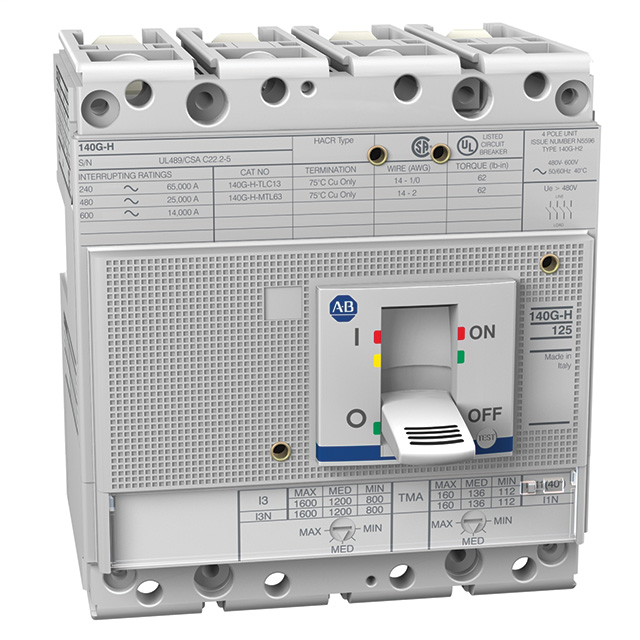

Allen-Bradley 140G-H6F4-D10 140G 125A H Frame

Features

• Provides greater customization in trip units
• Offers a wide range of accessories for global availability
• Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
• Offers a wide range of operating mechanisms to fit a variety of panel configurations

Specifications

• Bulletin Number: 140G - Molded Case Circuit Breaker
• Frame/Rating: H Frame (125 A)
• Interrupting Rating, 50/60 Hz, 240V (kA): 150
• Interrupting Rating, 50/60 Hz, 480V (kA): 65
• Interrupting Rating, 50/60 Hz, 600V (kA): 25
• Breaking Capacity, 50/60 Hz, 220V (kA): 100
• Breaking Capacity, 50/60 Hz, 415V (kA): 70
• Breaking Capacity, 50/60 Hz, 440V (kA): 65
• Breaking Capacity, 50/60 Hz, 690V (kA): 15

Circuit Breaker Data

• Device Type: 140G - Molded Case Circuit Breaker
• Number of Poles: 4 Poles
• Frame Size: H frame
• Rated Current(A): 100 A
• Protection: T/M - Thermal Magnetic

Manufacturing

• Assembly: Factory Assembled
