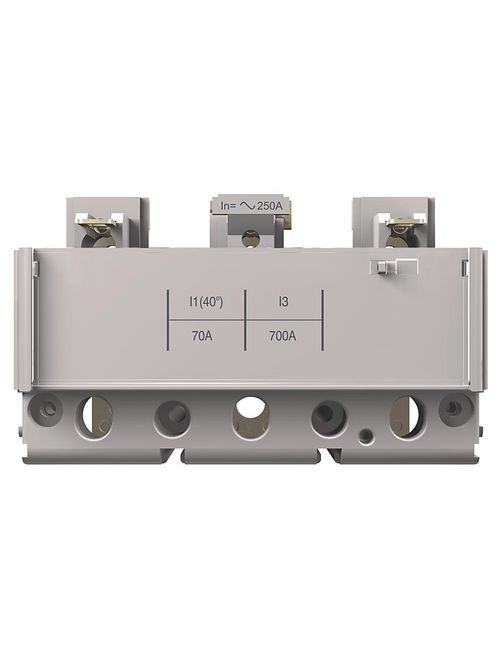

A-B 140G-J2C3-C50 140G 250A J Frame
Product image thumbnail 0
Product image thumbnail 1
$1,536.73/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 140G-J2C3-C50
North Coast Part # 997353

Features

  • Offers a wide range of accessories for global availability
  • Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
  • Provides greater customization in trip units
  • Offers a wide range of operating mechanisms to fit a variety of panel configurations

Specifications

  • Bulletin Number: 140G - Molded Case Circuit Breaker
  • Frame/Rating: J Frame (250 A)
  • Interrupting Rating, 50/60 Hz, 240V (kA): 65
  • Interrupting Rating, 50/60 Hz, 480V (kA): 25
  • Interrupting Rating, 50/60 Hz, 600V (kA): 14
  • Breaking Capacity, 50/60 Hz, 220V (kA): 65
  • Breaking Capacity, 50/60 Hz, 415V (kA): 36
  • Breaking Capacity, 50/60 Hz, 440V (kA): 36
  • Breaking Capacity, 50/60 Hz, 690V (kA): 10

Circuit Breaker Data

  • Device Type: 140G - Molded Case Circuit Breaker
  • Number of Poles: 3 Poles
  • Frame Size: J frame
  • Rated Current(A): 50 A
  • Protection: T/M - Thermal Magnetic

Manufacturing

  • Assembly: Factory Assembled

Overview

UPC 88563056875
GTiN 00885630568751
Type Molded Case Ckt-Bkr
Family Brand Name Allen Bradley
Frame 250A J Frame
Current 50 A
Trip Type Fixed Magnetic,Fixed Thermal
Number of Poles 3 Pole
Interrupt Rating 25 kA
Trip Range 80 Percent MCCB
Standard CCC
