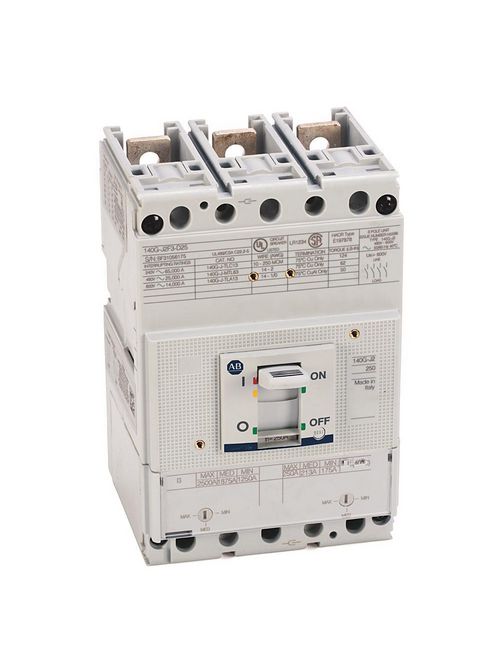

Allen-Bradley 140G-J2F3-D25 140G 250A J Frame
$1,573.03/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 140G-J2F3-D25
North Coast Part # 997360

Features

  • Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
  • Provides greater customization in trip units
  • Offers a wide range of accessories for global availability
  • Offers a wide range of operating mechanisms to fit a variety of panel configurations

Specifications

Circuit Breaker Data

  • Device Type: 140G - Molded Case Circuit Breaker
  • Number of Poles: 3 Poles
  • Frame Size: J frame
  • Rated Current(A): 250 A
  • Protection: T/M - Thermal Magnetic
  • Bulletin Number: 140G - Molded Case Circuit Breaker
  • Frame/Rating: J Frame (250 A)
  • Interrupting Rating, 50/60 Hz, 240V (kA): 65
  • Interrupting Rating, 50/60 Hz, 480V (kA): 25
  • Interrupting Rating, 50/60 Hz, 600V (kA): 14
  • Breaking Capacity, 50/60 Hz, 220V (kA): 65
  • Breaking Capacity, 50/60 Hz, 415V (kA): 36
  • Breaking Capacity, 50/60 Hz, 440V (kA): 36
  • Breaking Capacity, 50/60 Hz, 690V (kA): 10

Manufacturing

  • Assembly: Factory Assembled

Overview

UPC 88563056876
GTiN 00885630568768
Type Global
Family Brand Name Allen Bradley
Frame J, 250 A
Current 250 A
Trip Type Adjustable Thermal/Adjustable Magnetic
Number of Poles 3 Pole
Interrupt Rating 25 kA
Trip Range 175 - 250 A Thermal, 1250 - 2500 A Magnetic
Applications For Line Protection of Control Panels
Temperature Rating 104 F Ambient
Blade Dimensions 105 mm W x 82.5 mm D x 160 mm H
Environmental Conditions -40 to 176 F Storage
