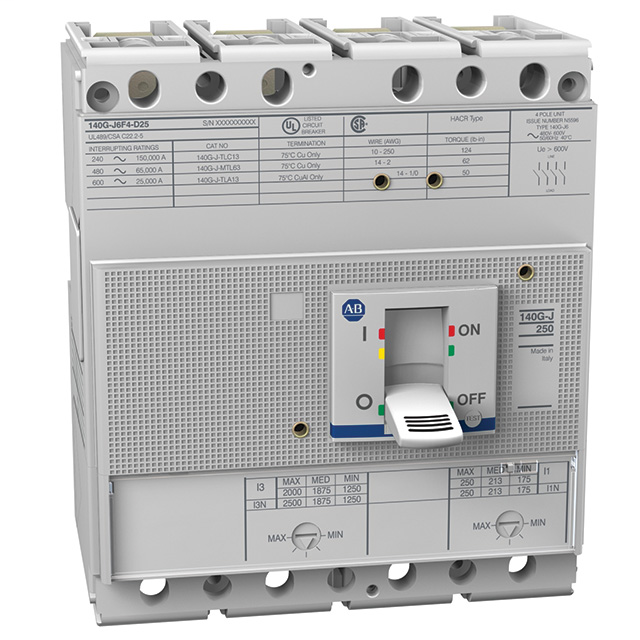

Allen-Bradley 140G-J3F4-D12 140G 250A J Frame

Features

• Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
• Provides greater customization in trip units
• Offers a wide range of accessories for global availability
• Offers a wide range of operating mechanisms to fit a variety of panel configurations

Specifications

• Bulletin Number: 140G - Molded Case Circuit Breaker
• Frame/Rating: J Frame (250 A)
• Interrupting Rating, 50/60 Hz, 240V (kA): 100
• Interrupting Rating, 50/60 Hz, 480V (kA): 35
• Interrupting Rating, 50/60 Hz, 600V (kA): 18
• Breaking Capacity, 50/60 Hz, 220V (kA): 85
• Breaking Capacity, 50/60 Hz, 415V (kA): 50
• Breaking Capacity, 50/60 Hz, 440V (kA): 50
• Breaking Capacity, 50/60 Hz, 690V (kA): 12

Circuit Breaker Data

• Device Type: 140G - Molded Case Circuit Breaker
• Number of Poles: 4 Poles
• Frame Size: J frame
• Rated Current(A): 125 A
• Protection: T/M - Thermal Magnetic

Manufacturing

• Assembly: Factory Assembled
