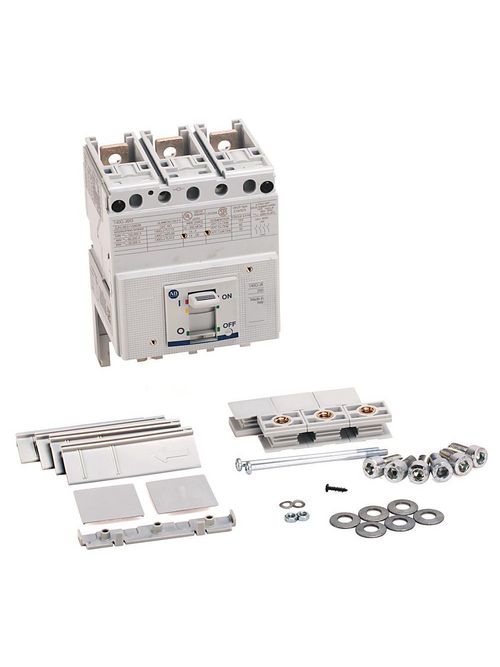

Allen-Bradley 140G-J6C3-C70 140G 250A J Frame
$3,808.33/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 140G-J6C3-C70
North Coast Part # 997403

Features

  • Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
  • Offers a wide range of accessories for global availability
  • Provides greater customization in trip units
  • Offers a wide range of operating mechanisms to fit a variety of panel configurations

Specifications

Circuit Breaker Data

  • Device Type: 140G - Molded Case Circuit Breaker
  • Number of Poles: 3 Poles
  • Frame Size: J frame
  • Rated Current(A): 70 A
  • Protection: T/M - Thermal Magnetic
  • Bulletin Number: 140G - Molded Case Circuit Breaker
  • Frame/Rating: J Frame (250 A)
  • Interrupting Rating, 50/60 Hz, 240V (kA): 150
  • Interrupting Rating, 50/60 Hz, 480V (kA): 65
  • Interrupting Rating, 50/60 Hz, 600V (kA): 25
  • Breaking Capacity, 50/60 Hz, 220V (kA): 100
  • Breaking Capacity, 50/60 Hz, 415V (kA): 70
  • Breaking Capacity, 50/60 Hz, 440V (kA): 65
  • Breaking Capacity, 50/60 Hz, 690V (kA): 15

Manufacturing

  • Assembly: Factory Assembled

Overview

UPC 88717232263
GTiN 00887172322631
Type Molded Case Ckt-Bkr
Family Brand Name Allen Bradley
Frame J, 250 A
Current 70 A
Trip Type Fixed Thermal/Fixed Magnetic
Number of Poles 3 Pole
Interrupt Rating 65 kA at 480 V
Trip Range 70 A Thermal, 700 A Magnetic
Temperature Rating 104 F
Blade Dimensions 5.71 in W x 3.22 in D x 8.3 in H
Environmental Conditions -40 to 176 F
