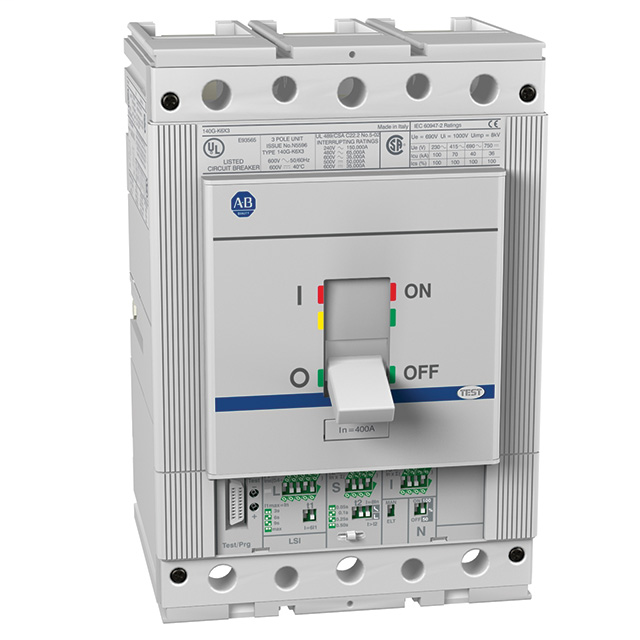

Allen-Bradley 140G-K3H3-D40 140G 400A K Frame
$4,125.77/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 140G-K3H3-D40
North Coast Part # 997505

Features

  • Offers a wide range of operating mechanisms to fit a variety of panel configurations
  • Offers a wide range of accessories for global availability
  • Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
  • Provides greater customization in trip units

Specifications

Circuit Breaker Data

  • Device Type: 140G - Molded Case Circuit Breaker
  • Number of Poles: 3 Poles
  • Frame Size: K frame
  • Rated Current(A): 400 A
  • Protection: LSI (electronic)
  • Current Range: 80% Rated
  • Bulletin Number: 140G - Molded Case Circuit Breaker
  • Frame/Rating: K Frame (400 A)
  • Interrupting Rating, 50/60 Hz, 240V (kA): 100
  • Interrupting Rating, 50/60 Hz, 480V (kA): 35
  • Interrupting Rating, 50/60 Hz, 600V (kA): 25
  • Breaking Capacity, 50/60 Hz, 220V (kA): 85
  • Breaking Capacity, 50/60 Hz, 415V (kA): 50
  • Breaking Capacity, 50/60 Hz, 440V (kA): 40
  • Breaking Capacity, 50/60 Hz, 690V (kA): 25
  • Interrupting Rating, 50/60 Hz, 500V DC (kA): 35
  • Interrupting Rating, 50/60 Hz, 600V DC (kA): 25

Manufacturing

  • Assembly: Factory Assembled

Overview

UPC 88717231368
GTiN 00887172313684
Type Molded Case Ckt-Bkr
Family Brand Name Allen Bradley
Frame 400A K Frame
Current 400 A
Trip Type ElecLSI - Lg&ShTm,Hgh Inst
Number of Poles 3 Pole
Interrupt Rating 35 kA at 480V
Trip Range 80 Percent MCCB
