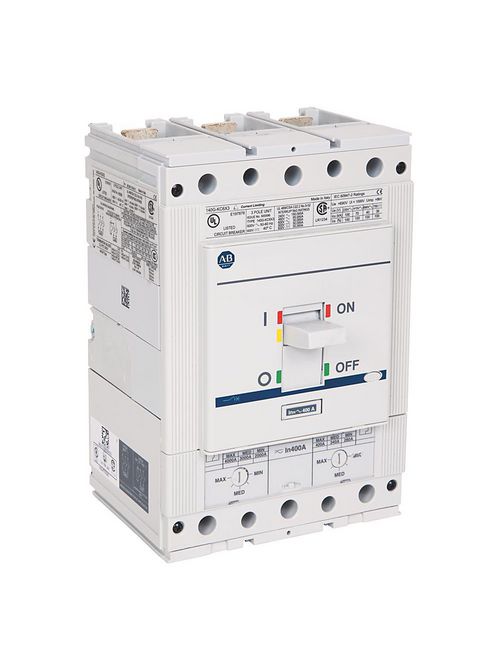

A-B 140G-KC6F3-D40 140G 125A Frame
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$5,315.29/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 140G-KC6F3-D40
North Coast Part # 1437478

Features

  • Offers a wide range of operating mechanisms to fit a variety of panel configurations
  • Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
  • Offers a wide range of accessories for global availability
  • Provides greater customization in trip units

Specifications

  • Bulletin Number: 140G - Molded Case Circuit Breaker
  • Frame/Rating: KC Frame (400 A) (Current Limiting)
  • Interrupting Rating, 50/60 Hz, 240V (kA): 150
  • Interrupting Rating, 50/60 Hz, 480V (kA): 65
  • Interrupting Rating, 50/60 Hz, 600V (kA): 35
  • Breaking Capacity, 50/60 Hz, 220V (kA): 100
  • Breaking Capacity, 50/60 Hz, 690V (kA): 40
  • Breaking Capacity, 50/60 Hz, 500V (kA): 50

Circuit Breaker Data

  • Device Type: 140G - Molded Case Circuit Breaker
  • Number of Poles: 3 Poles
  • Frame Size: KC frame (current limiting)
  • Rated Current(A): 400 A
  • Protection: T/M - Thermal Magnetic

Manufacturing

  • Assembly: Factory Assembled

Categories

Overview

UPC 88950814424
Item Long Description 140G 125A Frame Molded Case Ckt-Bkr
GTiN 00889508144245
Type Global
Family Brand Name Allen Bradley
Frame K, 400 A
Current 400 A
Trip Type Adjustable Thermal/Adjustable Magnetic
Number of Poles 3 Pole
Interrupt Rating 65 kA
Trip Range 280 - 400 A Thermal, 2000 - 4000 A Magnetic
Applications For Line Protection of Control Panels
Temperature Rating 104 F Ambient
Blade Dimensions 139.5 mm W x 103.5 mm D x 205 mm H
Environmental Conditions -40 to 176 F Storage
