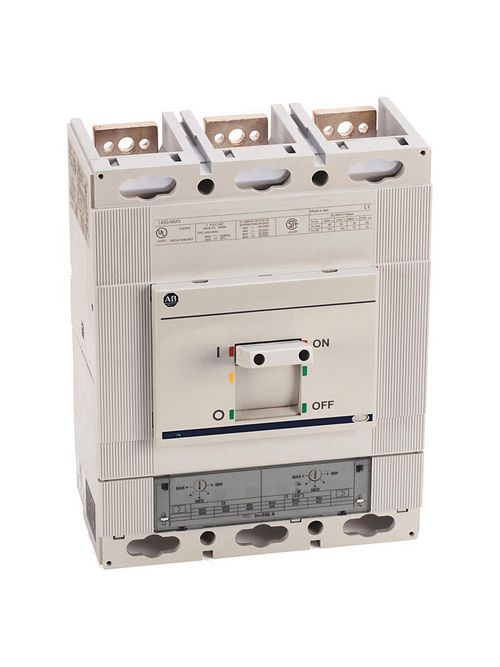

Allen-Bradley 140G-M5F3-D60 140G 800A M Frame
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$6,848.97/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 140G-M5F3-D60
North Coast Part # 997553

Features

  • Offers a wide range of accessories for global availability
  • Provides greater customization in trip units
  • Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
  • Offers a wide range of operating mechanisms to fit a variety of panel configurations

Specifications

  • Bulletin Number: 140G - Molded Case Circuit Breaker
  • Frame/Rating: M Frame (800 A)
  • Interrupting Rating, 50/60 Hz, 240V (kA): 100
  • Interrupting Rating, 50/60 Hz, 480V (kA): 50
  • Interrupting Rating, 50/60 Hz, 600V (kA): 25
  • Breaking Capacity, 50/60 Hz, 220V (kA): 85
  • Breaking Capacity, 50/60 Hz, 415V (kA): 50
  • Breaking Capacity, 50/60 Hz, 690V (kA): 22
  • Interrupting Rating, 50/60 Hz, 600V DC (kA): 20

Circuit Breaker Data

  • Device Type: 140G - Molded Case Circuit Breaker
  • Number of Poles: 3 Poles
  • Frame Size: M frame
  • Rated Current(A): 600 A
  • Protection: T/M - Thermal Magnetic
  • Current Range: 80% Rated

Manufacturing

  • Assembly: Factory Assembled

Categories

Overview

UPC 88717230733
Item Long Description 140G 800A M Frame Molded Case Ckt-Bkr
GTiN 00887172307331
Type Global
Family Brand Name Allen Bradley
Frame M, 800 A
Current 600 A
Trip Type Adjustable Thermal/Adjustable Magnetic
Number of Poles 3 Pole
Trip Range 420 - 600 A Thermal, 3000 - 6000 A Magnetic
Applications For Line Protection of Control Panels
Temperature Rating 104 F Ambient
Blade Dimensions 210 mm W x 103.5 mm D x 268 mm H
Environmental Conditions -40 to 176 F Storage
Interrupt Rating 50 kA
Standard RCM
