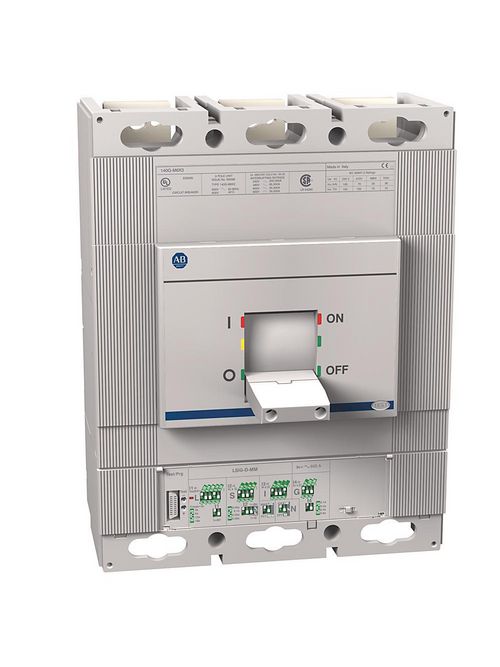

Allen-Bradley 140G-M6K3-D60 140G 800A M Frame
Product image thumbnail 0
Product image thumbnail 1
$17,776.98/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 140G-M6K3-D60
North Coast Part # 997576

Features

  • Offers a wide range of operating mechanisms to fit a variety of panel configurations
  • Offers a wide range of accessories for global availability
  • Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
  • Provides greater customization in trip units

Specifications

  • Bulletin Number: 140G - Molded Case Circuit Breaker
  • Frame/Rating: M Frame (800 A)
  • Interrupting Rating, 50/60 Hz, 240V (kA): 200
  • Interrupting Rating, 50/60 Hz, 480V (kA): 65
  • Interrupting Rating, 50/60 Hz, 600V (kA): 35
  • Breaking Capacity, 50/60 Hz, 220V (kA): 100
  • Breaking Capacity, 50/60 Hz, 415V (kA): 70
  • Breaking Capacity, 50/60 Hz, 690V (kA): 25
  • Interrupting Rating, 50/60 Hz, 600V DC (kA): 35

Circuit Breaker Data

  • Device Type: 140G - Molded Case Circuit Breaker
  • Number of Poles: 3 Poles
  • Frame Size: M frame
  • Rated Current(A): 600 A
  • Protection: LSIG-M (electronic)
  • Current Range: 80% Rated

Manufacturing

  • Assembly: Factory Assembled

Overview

UPC 88717233148
GTiN 00887172331480
Type Molded Case Ckt-Bkr
Family Brand Name Allen Bradley
Frame 800A M Frame
Current 600 A
Trip Type ElecLSIG
Number of Poles 3 Pole
Interrupt Rating 65 kA
Trip Range 80 Percent MCCB
