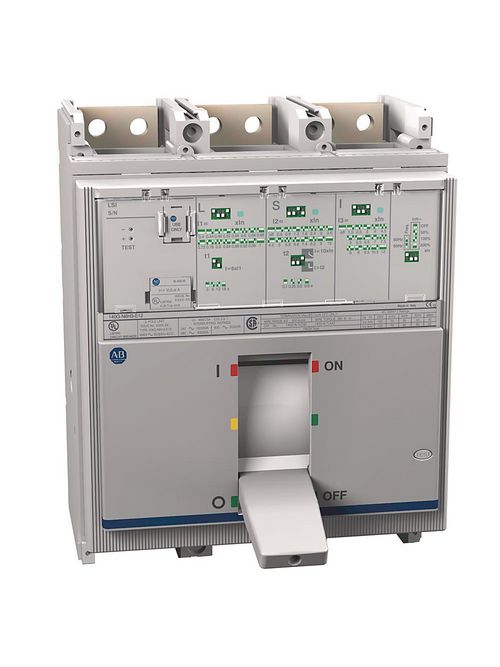

A-B 140G-N0I3-E12 140G 1200A Frame

Features

• Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
• Offers a wide range of operating mechanisms to fit a variety of panel configurations
• Provides greater customization in trip units
• Offers a wide range of accessories for global availability

Specifications

• Bulletin Number: 140G - Molded Case Circuit Breaker
• Frame/Rating: N Frame (1200 A)
• Interrupting Rating, 50/60 Hz, 240V (kA): 150
• Interrupting Rating, 50/60 Hz, 480V (kA): 100
• Interrupting Rating, 50/60 Hz, 600V (kA): 65
• Breaking Capacity, 50/60 Hz, 220V (kA): 200
• Breaking Capacity, 50/60 Hz, 415V (kA): 120
• Breaking Capacity, 50/60 Hz, 440V (kA): 100
• Breaking Capacity, 50/60 Hz, 690V (kA): 50
• Breaking Capacity, 50/60 Hz, 500V (kA): 85

Circuit Breaker Data

• Device Type: 140G - Molded Case Circuit Breaker
• Number of Poles: 3 Poles
• Frame Size: N frame
• Rated Current(A): 1200 A
• Protection: LSIG (electronic)
• Current Range: 80% Rated

Manufacturing

• Assembly: Factory Assembled
