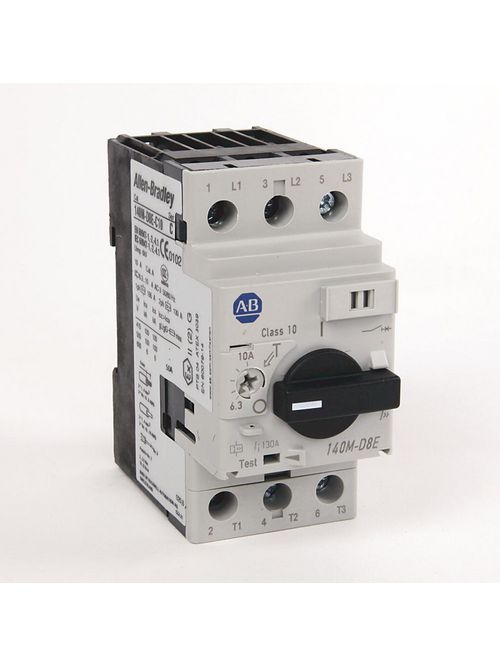

Allen Bradley 140M-D8E-C16-KN-MT Motor Protector Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
$439.90/ea
In Stock | 1 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 140M-D8E-C16-KN-MT
North Coast Part # 1552764

Specifications

System Voltage Data

  • Supply Voltage: 480V 60Hz

Circuit Breaker

  • Circuit Breaker Type: Motor Protection Circuit Breaker
  • Adj. Thermal Current Range (A): 10 - 16A
  • Application: Standard Magnetic Trip (Fixed at 13 x le)
  • Frame Size: Frame Size D
  • Breaking Capacity: High Breaking Capacity
  • UL Listed Application Ratings: UL 508 - Manual Motor Controller

Short Circuit Coordination

  • Coordination Type: Type 1

Options

  • Side Mount Shunt Trip and Undervoltage Release: None
  • Front Mount Auxiliary and Trip Contacts: None
  • Side Mount Auxiliary and Trip Contacts (TESTDESC): None
  • Knobs and Adaptor: Lockable Twist Knob - Black
  • Busbar Mounting (Only for Use with 141A Mounting System): Standard Bus Bar Mount, Top Feed

Overview

UPC 78118087986
GTiN 00781180879869
Type High Break
Family Brand Name Allen Bradley
Circuit Breaker Type Motor Protection Circuit Breaker
Applications For Branch-Circuit, Short-Circuit Protection, Motor and Overload Protection
Mounting Type 35 mm DIN Rail
Temperature Rating -25 to 60 C
Frame D, 32 A
Power Rating 4 kW at 230 V, 7.5 kW at 400/415 V, 10 kW at 500 V, 13 kW at 690 V
Blade Dimensions 84.5 mm D x 92 mm H
Environmental Conditions 3 Degree of Pollution, -40 to 80 C Storage
Trip Type Adjustable Thermal/Fixed Magnetic
Number of Poles 3 Pole
Interrupt Rating 65 kA
Trip Range 208 A
Amperage 1200 Amp
