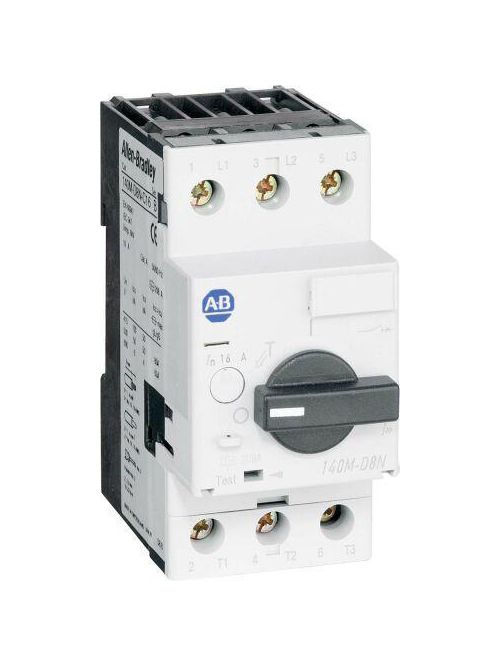

Allen-Bradley 140M-D8N-B63-BX Motor Circuit P
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$309.23/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 140M-D8N-B63-BX
North Coast Part # 1687702

Specifications

System Voltage Data

  • Supply Voltage: 480V 60Hz

Circuit Breaker

  • Circuit Breaker Type: Motor Circuit Protector
  • Rated Operational Current (A): 6.3A
  • Application: Standard Magnetic Trip (Fixed at 13 x le)
  • Frame Size: Frame Size D
  • Magnetic Trip Current (A): 82A Fixed
  • Breaking Capacity: High Breaking Capacity
  • UL Listed Application Ratings: UL 508 - Manual Motor Controller

Short Circuit Coordination

  • Coordination Type: Type 1

Options

  • Side Mount Shunt Trip and Undervoltage Release: None
  • Front Mount Auxiliary and Trip Contacts: 1 N.O.
  • Side Mount Auxiliary and Trip Contacts (TESTDESC): None

Categories

Overview

UPC 66207438337
Item Long Description Motor Circuit Protector Circuit-Breaker
GTiN 00662074383375
Family Brand Name Allen Bradley
Circuit Breaker Type Motor Circuit Protector
Type High Break
Applications For Branch-Circuit, Short-Circuit Protection, Motor and Overload Protection
Mounting Type 35 mm DIN Rail
Temperature Rating -25 to 60 C
Frame D, 32 A
Power Rating 1.5 kW at 230 V, 2.2 kW at 400/415 V, 3 kW at 500 V, 4 kW at 690 V
Blade Dimensions 92 mm H x 84.5 mm D
Environmental Conditions 3 Degree Pollution, -40 to 80 C Storage
Trip Type Fixed Magnetic
Number of Poles 3 Pole
Interrupt Rating 65 kA
Trip Range 82 A
