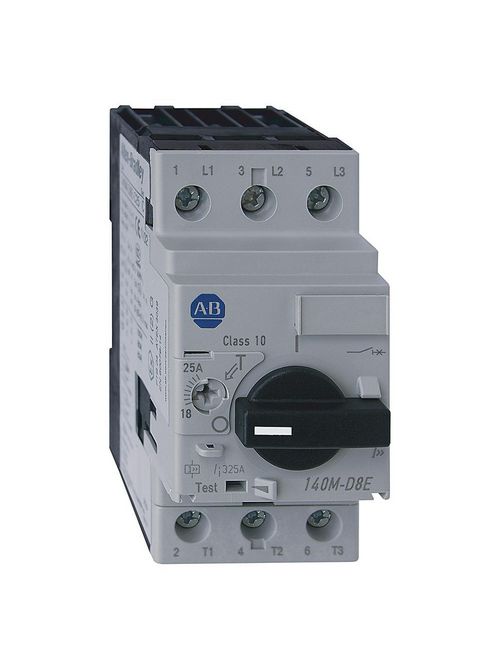

Allen-Bradley 140M-D8N-C25 Motor Protection Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
$362.09/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 140M-D8N-C25
North Coast Part # 153774

Features

  • Offers high switching capacity
  • Includes visible trip indication

Specifications

  • Type: High Breaking Capacity

System Voltage Data

  • Supply Voltage: 480V 60Hz

Circuit Breaker

  • Circuit Breaker Type: Motor Circuit Protector
  • Rated Operational Current (A): 25A
  • Application: Standard Magnetic Trip (Fixed at 13 x le)
  • Frame Size: Frame Size D
  • Magnetic Trip Current (A): 325A Fixed
  • Breaking Capacity: High Breaking Capacity
  • UL Listed Application Ratings: UL 508 - Manual Motor Controller

Short Circuit Coordination

  • Coordination Type: Type 1

Options

  • Side Mount Shunt Trip and Undervoltage Release: None
  • Front Mount Auxiliary and Trip Contacts: None
  • Side Mount Auxiliary and Trip Contacts (TESTDESC): None

Categories

Overview

UPC 66246896469
GTiN 00662468964692
Type Circuit-Breaker
Applications For Motor Protection
Family Brand Name Allen Bradley
Circuit Breaker Type Motor Circuit Protector
Frame D
Blade Dimensions 45 mm W x 72 mm D x 91 mm H
Trip Type Fixed Magnetic
Number of Poles 3 Pole
Interrupt Rating 65 kA at 480 V
Trip Range 325 A
Voltage 480 VAC
Standard CCC
Amperage 25 Amp
