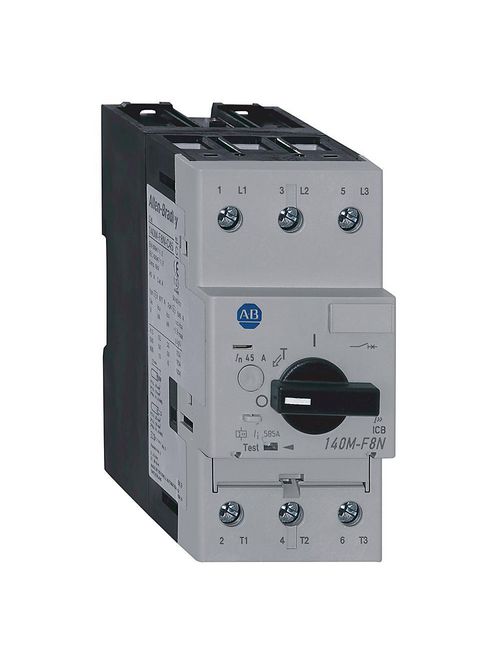

Allen-Bradley 140M-F8E-C16 Motor Protection Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
$484.79/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 140M-F8E-C16
North Coast Part # 72793

Features

  • Offers high switching capacity
  • Includes visible trip indication

Specifications

  • Trip Range: 10 - 16A
  • Type: High Breaking Capacity

System Voltage Data

  • Supply Voltage: 480V 60Hz

Circuit Breaker

  • Circuit Breaker Type: Motor Protection Circuit Breaker
  • Adj. Thermal Current Range (A): 10 - 16A
  • Application: Standard Magnetic Trip (Fixed at 13 x le)
  • Frame Size: Frame Size F
  • Breaking Capacity: High Breaking Capacity
  • UL Listed Application Ratings: UL 508 - Manual Motor Controller

Short Circuit Coordination

  • Coordination Type: Type 1

Options

  • Side Mount Shunt Trip and Undervoltage Release: None
  • Front Mount Auxiliary and Trip Contacts: None
  • Side Mount Auxiliary and Trip Contacts (TESTDESC): None

Overview

UPC 66246896449
GTiN 00662468964494
Type Circuit-Breaker
Applications For Motor Protection
Family Brand Name Allen Bradley
Circuit Breaker Type Motor Protection Circuit Breaker
Power Rating 7.5 kW at 400 VAC-3, 4 kW at 230 VAC-3
Actuator Variable Position Knob
Blade Dimensions 54 mm W x 62 mm D x 111.4 mm H
Trip Type Magnetic
Number of Poles 3 Pole
Interrupt Rating 100 kA
Trip Range 0 - 16 A
Voltage 230-690 Volt
Standard CCC,CE,CSA,CUL,GOST,UL
Amperage 1200 Amp
