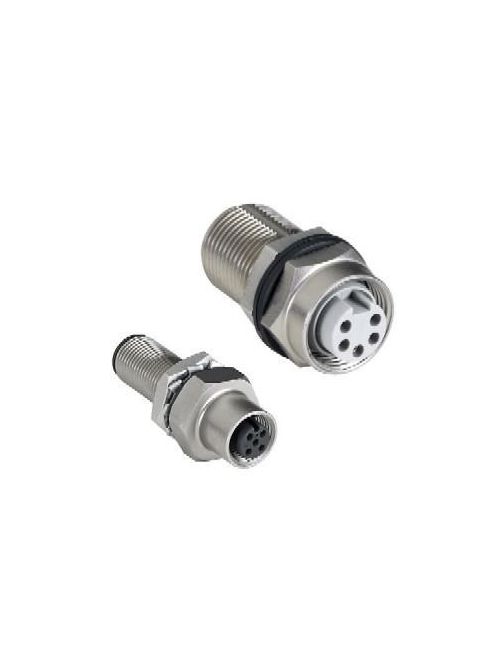

Allen-Bradley 1485A-CXN5-M5 Mini Bulkhead Pass-Through Thick Trunk Molded Cord Set
Product image thumbnail 0
Product image thumbnail 1
$71.12/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 1485A-CXN5-M5
North Coast Part # 65144

Features

  • Can provide power through only one pair of the four available contacts, so the other available pair can be used for single channel E-stop
  • Watertight connections (NEMA 4, 6P; IP 67)
  • Many end devices, including Rockwell Automation┬« hardened I/O products, use a different pin numbering convention for 4-pin mini connections than that used on physical media products
  • Ratcheting coupling nut resists vibration
  • E-stop T-ports and shorting plugs are red for easy identification
  • Both conventions have the same color code going to the same spot but they use a different pin numbering designation
  • Highly pliable polyvinylchloride (PVC) jacket material
  • Polyvinylchloride (PVC) jacket resists oil and chemicals
  • Sized to fit inside 1-in. conduit
  • Physical key to ensure proper connection alignment
  • Gold plated contacts

Specifications

Device Type

  • Media System: DeviceNet Round Media
  • Connector Device Type: Bulkhead Pass-thru

Connector Data

  • Connector Version: Standard
  • Connector Style: Male Mini Connector
  • Connector Type: Female Mini
  • Port Number: 1 Port

Overview

UPC 61132097084
GTiN 00611320970845
Type 1-Port, Standard
Applications Bulkhead passthru, 5-pin Mini
Family Brand Name Allen Bradley
Material Nickel Plated Brass
TC Connection 5-Pin Male Mini/5-Pin Female Mini
Sub Brand DeviceNet
Standard CSA,CUL,KC,UL
