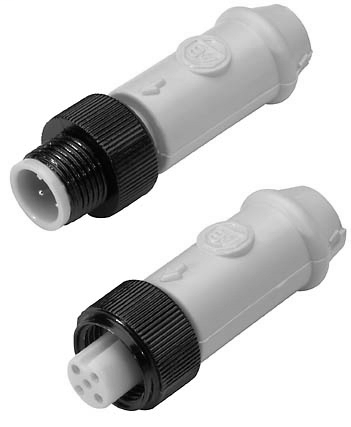

Allen-Bradley 1485A-T1M5 Mini Male Sealed Style Terminator
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$48.45/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 1485A-T1M5
North Coast Part # 15991

Features

  • Can provide power through only one pair of the four available contacts, so the other available pair can be used for single channel E-stop
  • Ratcheting coupling nut resists vibration
  • Highly pliable polyvinylchloride (PVC) jacket material
  • Physical key to ensure proper connection alignment
  • Many end devices, including Rockwell Automation┬« hardened I/O products, use a different pin numbering convention for 4-pin mini connections than that used on physical media products
  • Watertight connections (NEMA 4, 6P; IP 67)
  • Gold plated contacts
  • Both conventions have the same color code going to the same spot but they use a different pin numbering designation
  • E-stop T-ports and shorting plugs are red for easy identification
  • Polyvinylchloride (PVC) jacket resists oil and chemicals
  • Sized to fit inside 1-in. conduit

Specifications

Device Type

  • Media System: DeviceNet Round Media
  • Connector Device Type: Terminator

Connector Data

  • Connector Version: Standard
  • Connector Style: Terminator
  • Connector Type: Male Mini
  • Port Number: 1 Port

Overview

GTiN 00662468421034
Type Terminator, Mini male,DeviceNet Accessory
Material Zinc
Applications For DeviceNet Media System
Temperature Rating -25 to 70 C
Family Brand Name Allen Bradley
Contact Material Gold Plated Brass
TC Connection Straight Male
Blade Dimensions 61.8 mm L x 27 mm W
Product UPC 66246842103
Voltage 250 Volt
Standard CSA,CUL,KC,MARINE,UL
