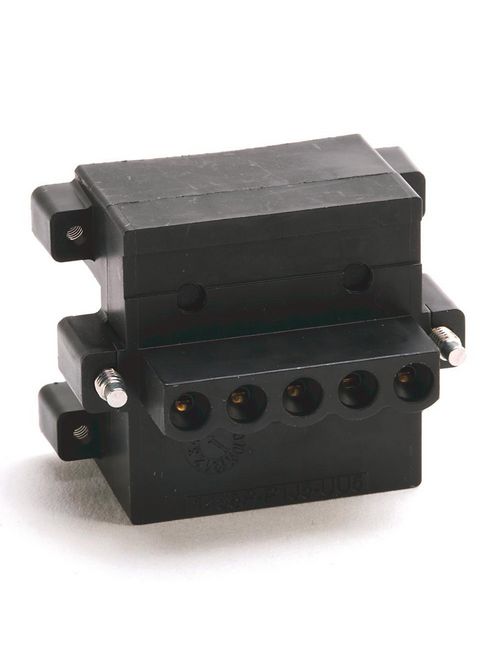

Allen-Bradley 1485P-P1E4-R5 Devicenet Connection Device
Product image thumbnail 0
Product image thumbnail 1
$91.62/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 1485P-P1E4-R5
North Coast Part # 18792

Features

  • Both conventions have the same color code going to the same spot but they use a different pin numbering designation
  • Watertight connections (NEMA 4, 6P; IP 67)
  • Sized to fit inside 1-in. conduit
  • Can provide power through only one pair of the four available contacts, so the other available pair can be used for single channel E-stop
  • E-stop T-ports and shorting plugs are red for easy identification
  • Many end devices, including Rockwell Automation┬« hardened I/O products, use a different pin numbering convention for 4-pin mini connections than that used on physical media products
  • Physical key to ensure proper connection alignment
  • Highly pliable polyvinylchloride (PVC) jacket material
  • Polyvinylchloride (PVC) jacket resists oil and chemicals
  • Ratcheting coupling nut resists vibration
  • Gold plated contacts

Specifications

Device Type

  • Media System: DeviceNet Flat Media System - KwikLink Heavy Duty
  • Connector Device Type: Insulation Displacement Connector

Connector Data

  • Connector Version: Standard
  • Connector Style: Female Micro
  • Port Number: 1 Port
  • Drop Connector Description: No Connector

Overview

UPC 66207277564
GTiN 00662072775646
Size Not Applicable
Type Heavy Duty
Material Valox
Temperature Rating -25 to 75 C
Family Brand Name Allen Bradley
TC Connection Micro Female
Sub Brand DeviceNet, KwikLink
Voltage 24 VDC
Standard CUL,KC,UL
Connection Type Not Applicable,Micro Female
