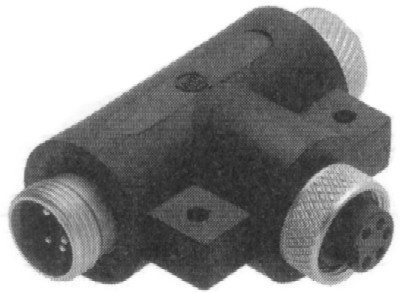

Allen Bradley 1485P-P1R5-MN5 DeviceNet Connection Device

Features

• Physical key to ensure proper connection alignment
• Ratcheting coupling nut resists vibration
• Many end devices, including Rockwell Automation® hardened I/O products, use a different pin numbering convention for 4-pin mini connections than that used on physical media products
• Both conventions have the same color code going to the same spot but they use a different pin numbering designation
• Can provide power through only one pair of the four available contacts, so the other available pair can be used for single channel E-stop
• Polyvinylchloride (PVC) jacket resists oil and chemicals
• E-stop T-ports and shorting plugs are red for easy identification
• Gold plated contacts
• Highly pliable polyvinylchloride (PVC) jacket material
• Watertight connections (NEMA 4, 6P; IP 67)
• Sized to fit inside 1-in. conduit

Specifications

Device Type

• Media System: DeviceNet Round Media
• Connector Device Type: T-Port

Connector Data

• Connector Version: Standard
• Connector Style: Mini Male/Mini Female Trunk Connection
• Connector Type: Female Micro, 5 Pin
• Port Number: 1 Port
• Drop Connector Description: No Keyway
