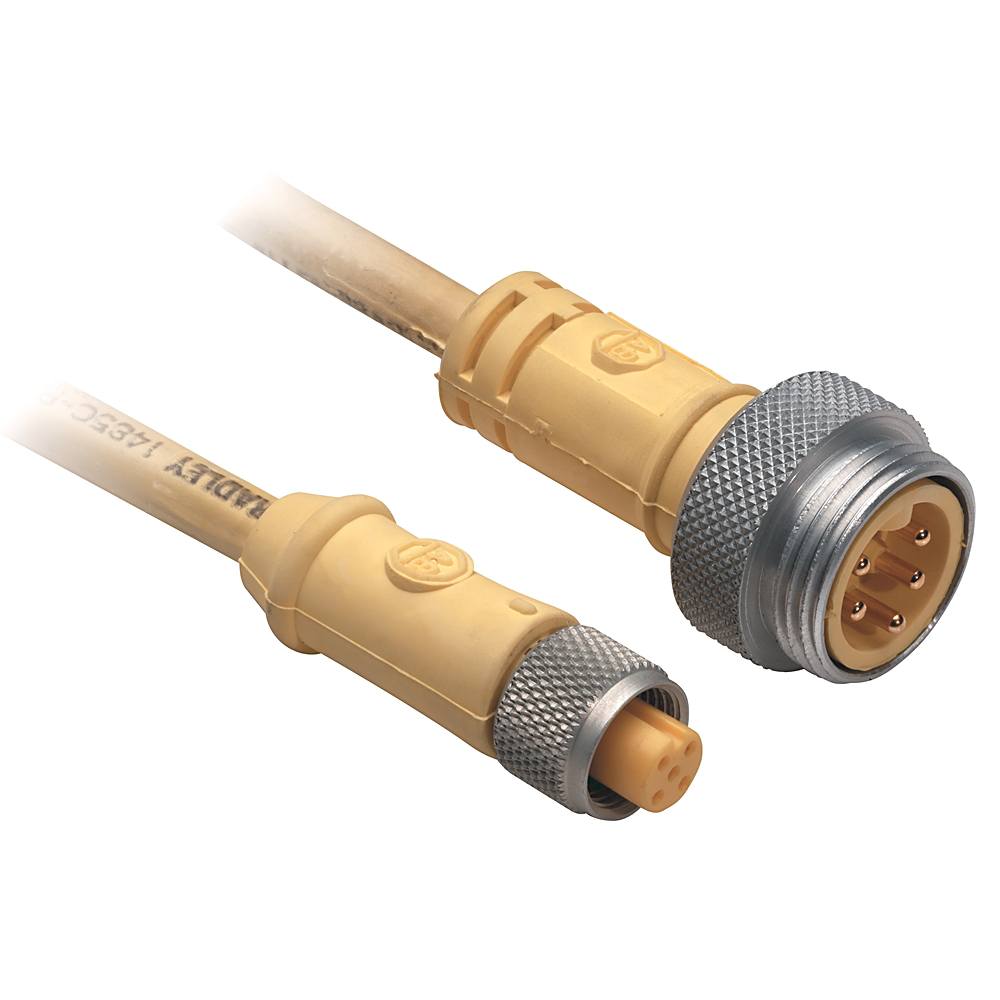

Allen-Bradley 1485R-P1R5-F5 Devicenet Straight Female Right Angle Male Trunk End
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$91.41/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 1485R-P1R5-F5
North Coast Part # 17241

Specifications

  • Second End Termination Style: Micro, Right Angle Male
  • Cable Details: Standard Passive Cable
  • Standard or Build-to-Order Cable Length: 1 meter (3.28 feet)
  • Second End Conductors: Standard 5-pin
  • Number Of Pins: Standard 5-pin
  • Connector: Standard - Epoxy Coated Zinc
  • First End Connector Style: Micro, Straight Female
  • Armour: Thin Media, Yellow CPE

Categories

Overview

UPC 66246842120
Item Long Description DeviceNet Physical Media
GTiN 00662468421201
Length 0-3 m
Type Thin
Connector Type 4-Pin M12 DC Micro Straight Female x 4-Pin M12 DC Micro Straight Male
Connection Type Standard - Epoxy Coated Zinc
Number of Pins 5
Family Brand Name Allen Bradley
Construction Thin Media, Yellow CPE,Standard - Epoxy Coated Zinc
Color Red
Material Brass Contact, Epoxy Coated Zinc Coupling Nut
Number of Conductors 5
Temperature Rating -20 to 70 C
Enclosure Type NEMA 1, 2, 3, 4, 6P, 12, 13
Cable Length 1 m
Bend Radius 69 mm
Used With DeviceNet Round Media System
Sub Brand DeviceNet
Standard KC
