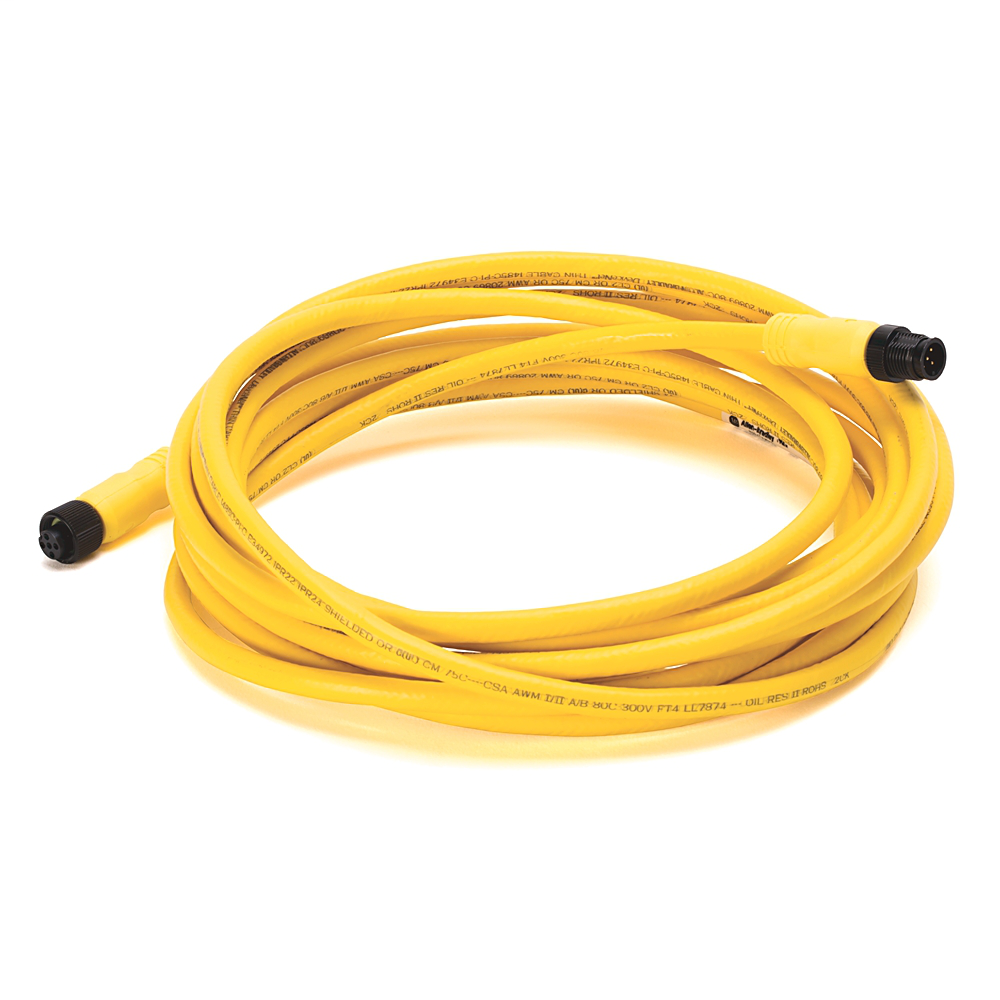

Allen-Bradley 1485R-P5M5-R5 Devicenet Physical Media
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 1485R-P5M5-R5
North Coast Part # 66561


  • Armour: Thin Media, Yellow CPE
  • Connector: Standard - Epoxy Coated Zinc
  • Number Of Pins: Standard 5-pin

Cable Data

  • Cable Type: Thin Media, Yellow CPE
  • Coupling Nut Material: Standard - Epoxy Coated Zinc
  • Cable Details: Standard Passive Cable
  • Standard or Build-to-Order Cable Length: 5 meters (16.4 feet)
  • First End Connector Style: Mini, Straight Male
  • Number of Pins: Standard 5-pin

Device End Data

  • Second End Termination Style: Micro, Straight Female
  • Second End Conductors: Standard 5-pin


UPC 66207204518
Item Long Description DeviceNet Physical Media
GTiN 00662072045183
Length 4 m
Type Standard, Thin
Connector Type 5-Pin Mini Straight Male x 5-Pin Micro Straight Male
Connection Type Standard - Epoxy Coated Zinc
Number of Pins 5
Family Brand Name Allen Bradley
Construction Thin Media, Yellow CPE,Standard - Epoxy Coated Zinc
Color Yellow
Material Brass Contact, Epoxy Coated Zinc Coupling Nut
Number of Conductors 5
Temperature Rating -20 to 70 C
Enclosure Type NEMA 1, 2, 3, 4, 6P, 12, 13
Cable Length 5 m
Bend Radius 69 mm
Used With DeviceNet Round Media System
Sub Brand DeviceNet
Standard C-TICK,KC
