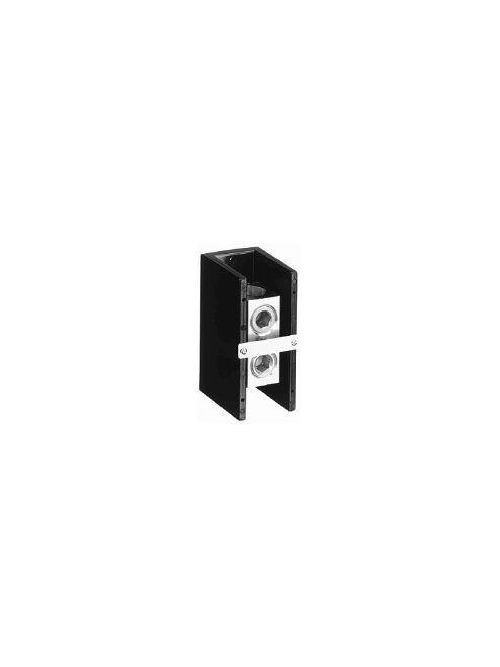

Allen-Bradley 1492-BF 420 Amp Power Distribution Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$124.69/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 1492-BF
North Coast Part # 151116

Features

  • Marked with wire range, tightening torque requirements, and SCCR values
  • Power distribution from a feed terminal block to any number of terminal blocks with smaller cross sections
  • Marked with wire range, tightening torque requirements and SCCR values
  • Feeder spacing
  • Numerous configurations for power distribution including feed left, feed right, and feed middle
  • Feed terminal block is rated for wires with cross sections from 4…14 AWG and up to 16 mm^2
  • IP2X Finger-safe protection

Specifications

Power Block Data

  • Base Block Type: Standard Feed-Through/Splicer Block
  • Number of Poles: 1-Pole
  • Connector Material: Aluminum
  • Openings per Pole (Line Side): 1 Opening
  • Rated Wire Range for Line Side: 600 kcmil - # 4 Copper wire
  • Openings per Pole (Load Side): 1 Opening
  • Rated Wire Range for Load Side: 600 kcmil - # 4 Copper wire
  • Current Rating (per Pole): 420 Amps
  • Marking Strips: Single White Strip Provided

Categories

Overview

UPC 66207231407
Item Long Description 420 A Power Distribution Block
GTiN 00662072314074
Width 2.28 in
Type Power Distribution Block
Applications Power Distribution
Depth 2.92 in
Family Brand Name Allen Bradley
Blade Dimensions 2.28 in W x 2.92 in D
Number of Poles 1 Pole
Sub Brand 1492
Voltage 600 Volt
Standard CCC,CE,CSA,KC,UL
