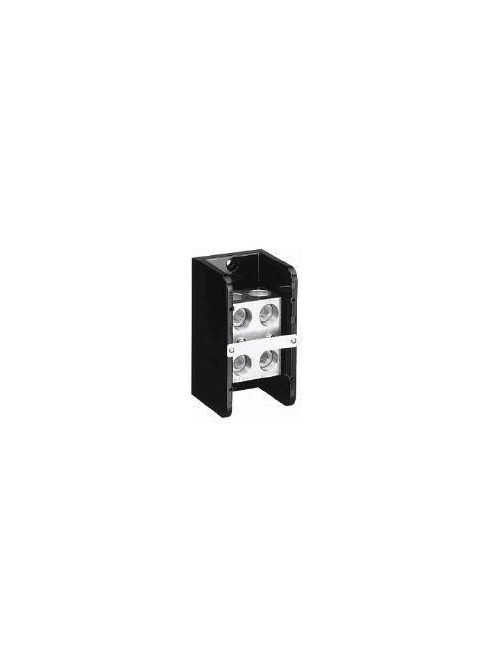

Allen-Bradley 1492-BG 760 Amp Power Distribution Block
Product image thumbnail 0
Product image thumbnail 1
$168.58/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 1492-BG
North Coast Part # 607015

Features

  • Power distribution from a feed terminal block to any number of terminal blocks with smaller cross sections
  • Marked with wire range, tightening torque requirements, and SCCR values
  • Feeder spacing
  • Feed terminal block is rated for wires with cross sections from 4…14 AWG and up to 16 mm^2
  • IP2X Finger-safe protection
  • Numerous configurations for power distribution including feed left, feed right, and feed middle
  • Marked with wire range, tightening torque requirements and SCCR values

Specifications

Power Block Data

  • Base Block Type: Standard Feed-Through/Splicer Block
  • Number of Poles: 1-Pole
  • Connector Material: Aluminum
  • Openings per Pole (Line Side): 2 Openings
  • Rated Wire Range for Line Side: 500 kcmil - # 4 Copper wire
  • Openings per Pole (Load Side): 2 Openings
  • Rated Wire Range for Load Side: 500 kcmil - # 4 Copper wire
  • Current Rating (per Pole): 760 Amps
  • Marking Strips: Single White Strip Provided

Overview

UPC 66207231406
GTiN 00662072314067
Width 3.17 in
Type Power Distribution Block
Conductor Size 25 - 240 mm
Applications Power Distribution
Depth 3.23 in
Connection Type Screw
Temperature Rating 150 C
Family Brand Name Allen Bradley
Blade Dimensions 80.25 mm W x 139.7 mm H
Number of Poles 1 Pole
Sub Brand 1492
Voltage 600 Volt
Standard CCC,CE,CSA,KC,UL
