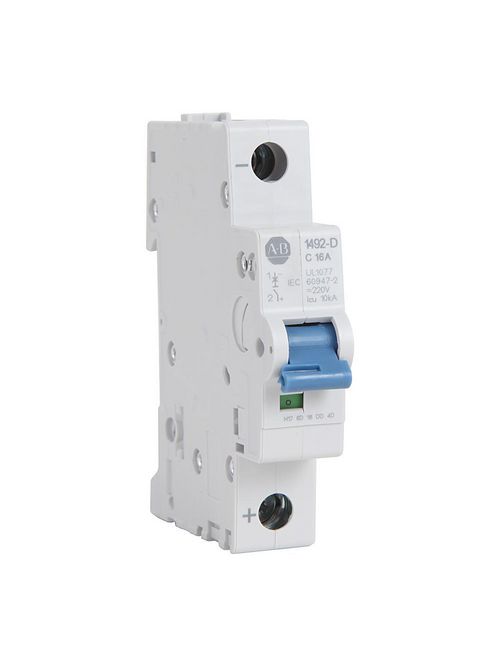

A-B 1492-D1C200 MCB Supplementary P
Product image thumbnail 0
Product image thumbnail 1
$114.71/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 1492-D1C200
North Coast Part # 1094819

Features

  • Includes overcurrent and short circuit protection for higher voltage DC circuits
  • Provides multi wire rating: 1 wire AWG 18…4; 2 to 4 wires AWG 18…10 max. 2 wires per slot
  • Provides C trip curve

Specifications

Supplemental Protectors Selection

  • Pole Configuration: 1-Pole
  • Rated Current: 20 A

Overview

UPC 88717234436
GTiN 00887172344367
Type Supplementary Protector
Family Brand Name Allen Bradley
Current 20 A
Number of Poles 1 Pole
Sub Brand MCB
Conductor Size 35 mm Solid/Stranded, 25/10 mm Flexible
Applications For Higher Voltage DC Circuits
Mounting Type DIN Rail with Fast Clip
Temperature Rating -25 to 55 C
Blade Dimensions 17.5 mm W x 88 mm D x 74 mm H
Trip Type D-Curve
Interrupt Rating 10 kA at UL/CSA, 10 kA at IEC
Used With UL 508 Listed Bus Bars
Standard CE,CSA,CUL,UL
Amperage 20 Amp
