Allen-Bradley 1492-EC85 5-Pole 25 Amp 600 Volt Pull-Apart Panel Mounted Terminal Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$79.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-PBS
Mfg Catalog # 1492-EC85
North Coast Part # 18813

Features

  • Multiple barrier strip blocks on select blocks let you connect solid or stranded wires, 6 or 12 poles
  • Pull-apart blocks are available in 3- or 5-pole versions
  • Pull-apart blocks let you disconnect multiple poles at once
  • High-temperature dovetail blocks handle up to 150 °C (302 °F) , let you interlock multiple poles, and require only two fastening points every 12 blocks

Specifications

  • Type: Pull-Apart Blocks
  • Number Of Terminals: 5 pole

Panel Mount Block Data

  • Base Block Type: Pull-Apart Blocks
  • Number of Poles: 5 pole
  • Terminal Type: Standard

Categories

Overview

UPC 78118016379
Item Long Description PNL MTD 5P 25A 600V Pull-Apart TERM Blk
GTiN 00781180163791
Color White
Type Pull-Apart Blocks
Terminal Type Standard
Conductor Size 20-10 AWG
Mounting Type Panel
Wire Size 10 AWG
Temperature Rating -40 to 105 C
Family Brand Name Allen Bradley

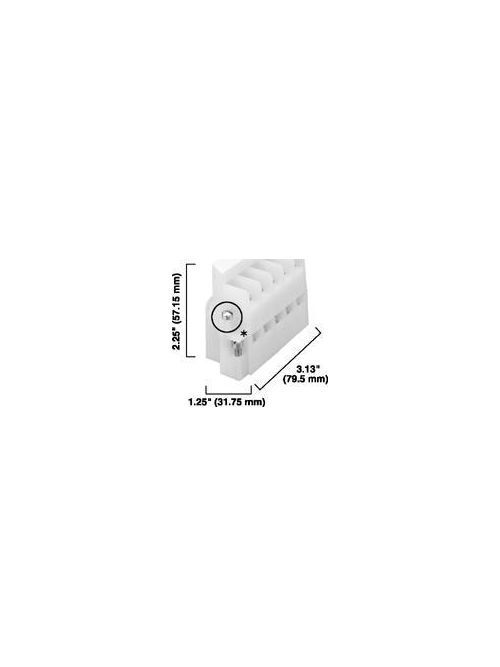

Blade Dimensions 2-1/4 in L x 1-1/4 in W x 3.13 in H
Number of Poles 5 Pole
Sub Brand 1492
Torque Rating 6 - 16 in-lb
Voltage 600 Volt
Standard CCC,KC,UL
