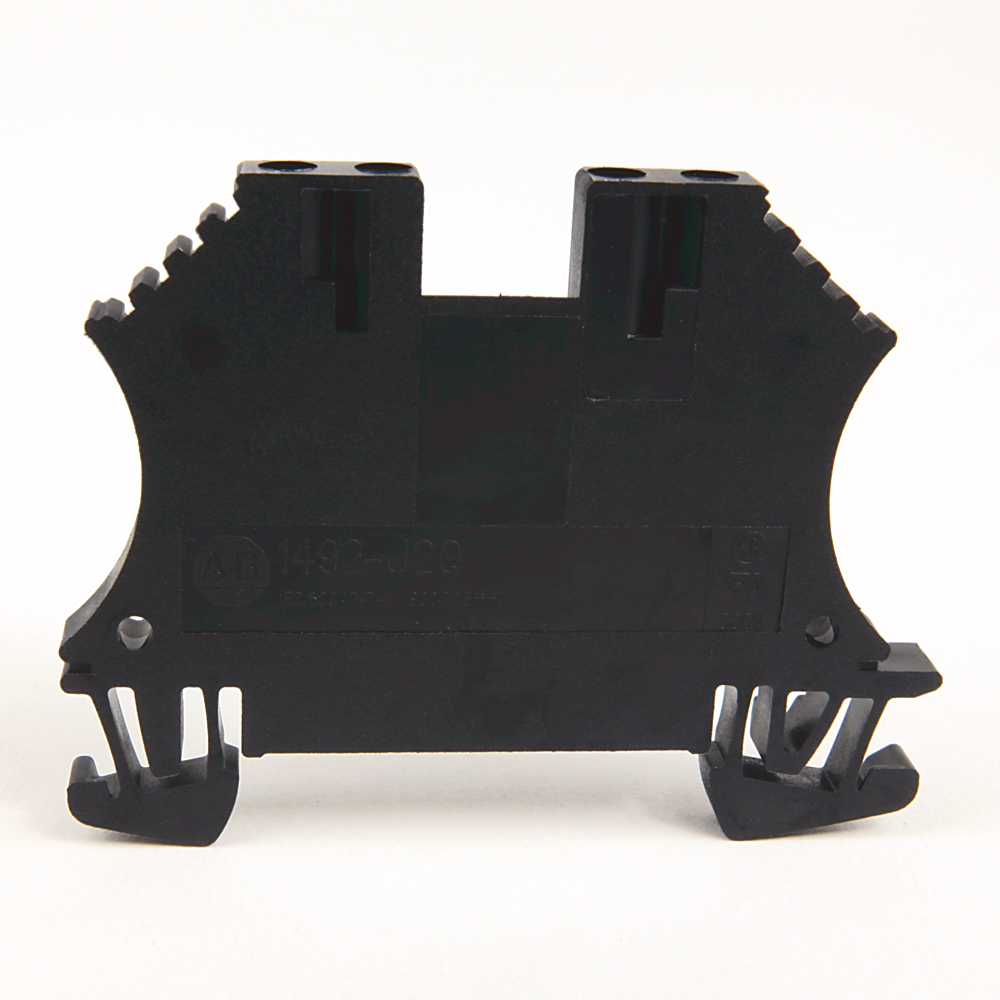

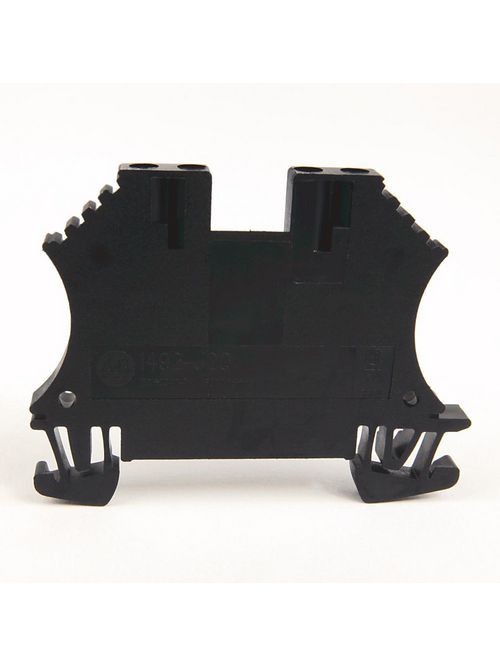

A-B 1492-J2Q-BL IEC 1-Ckt Feed-Thru
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4.18/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-J2Q-BL
North Coast Part # 598284

Features

  • Four-sided funnel wire guides
  • Improved panel space use
  • Fusing solutions
  • Backed-out screws
  • Wide range of accessories available
  • Self-locking screw type clamp design
  • Flexible plug-in connection system
  • Many accessories available
  • Finger-safe housing
  • Tin-plated terminal and zinc chromate steel screws

Specifications

  • Special Features: 2 Connection points on each side

Block Style

  • Base Block Style: Specialty Feed-Through Blocks

Base Data

  • Base Block Type: One-Circuit Feed-Through Block

Detail Data

  • Features: 2 Connection points on each side
  • Maximum Wire Size & Rating: UL: 22-12 AWG (25A @300V AC/DC) CSA: 26-12 AWG (10A @300V AC/DC) IEC: 1.5mm² (17.5A @800V AC/DC)
  • Color: Black

Categories

Overview

UPC 66207305883
Item Long Description IEC 1-Ckt Feed-Thru Blk,2 Conn Pts,1.5mm
GTiN 00662073058830
Color Black
Type IEC Screw Speciality Term Blk
Wire Size 12 AWG
Family Brand Name Allen Bradley
Terminal Size 5.1 x 60 x 39.5mm (0.20 x 2.36 x 1.56 in)
Sub Brand 1492
Voltage 300 Volt
Standard CCC,CE,CSA,CUL,KC,MARINE,UL
Amperage 10 Amp
