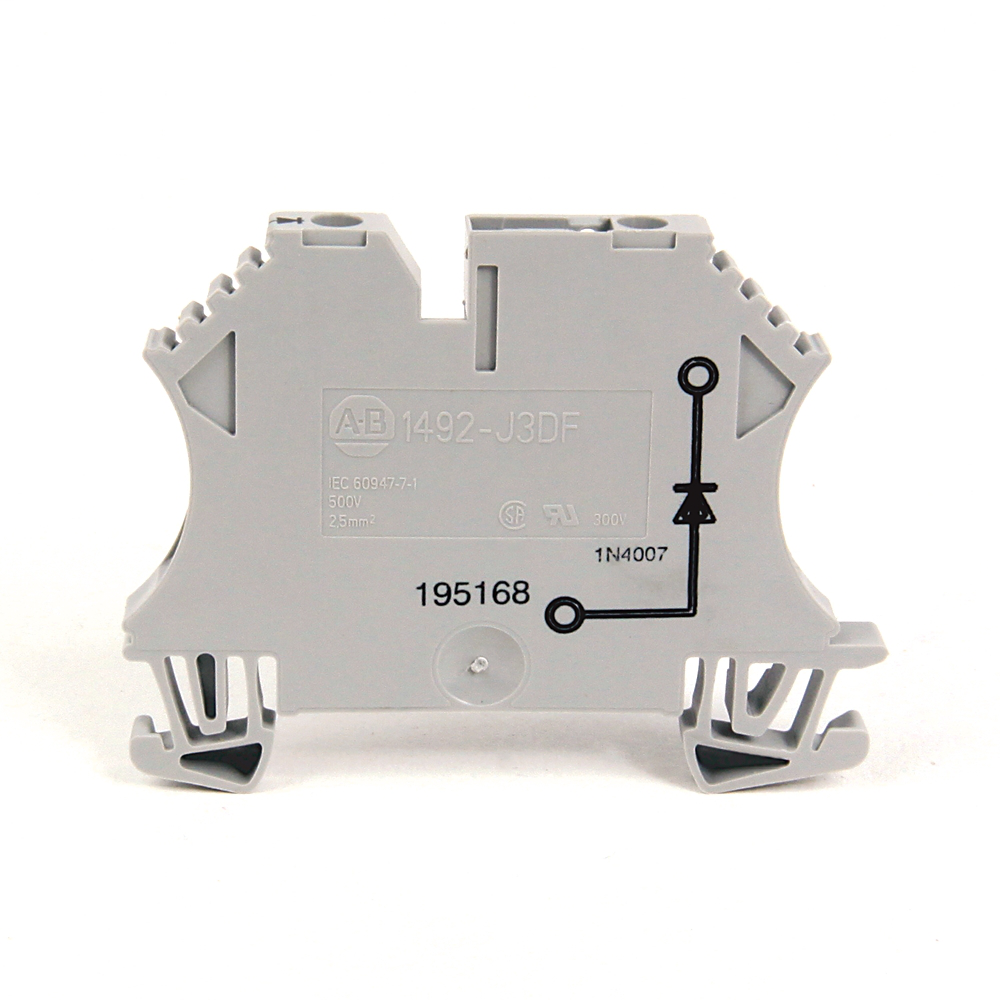

Allen-Bradley 1492-J3 2-1/2 mm Standard Terminal Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.36/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-J3
North Coast Part # 151641

Features

  • Copper current bar and tin-plated surface
  • Tin-plated terminal and zinc chromate steel screws
  • Compatible with several high visibility snap-in marker cards
  • Easy installation or removal from both sides of DIN Rail
  • Wide range of accessories available
  • Counter-sinking of clamping screws
  • Backed-out screws
  • Finger-safe housing
  • Four-sided funnel wire guides
  • Self-locking screw type clamp design

Specifications

  • Special Features: Standard Feedthrough

Block Style

  • Base Block Style: Standard Feed-Through Blocks

Base Data

  • Base Block Type: One-Circuit Feed-Through Block

Detail Data

  • Features: Standard Feedthrough
  • Maximum Wire Size & Rating: UL: 30-12 AWG (25A @600V AC/DC) CSA: 26-12 AWG (20A @600V AC/DC) IEC: 2.5mm² (24A @800V AC/DC) EEx e II: 2.5mm²/20-14 AWG (21A @ 550V AC/DC)
  • Color: Gray (Standard)

Overview

UPC 66207305792
Item Long Description 2.5 square mm Standard Terminal Block
GTiN 00662073057925
Color Grey
Type Standard
Terminal Type Screw
Mounting Type 35 mm DIN Rail
Wire Size 14 AWG
Temperature Rating -50 to 120 C
Family Brand Name Allen Bradley
Terminal Size 5.1 x 60 x 39.5mm (0.20 x 2.36 x 1.56 in)
Blade Dimensions 60 mm W x 39.5 mm H
Sub Brand 1492
Voltage 550 Volt
Standard CCC,CE,CSA,CUL,KC,MARINE,UL
Amperage 20 Amp
