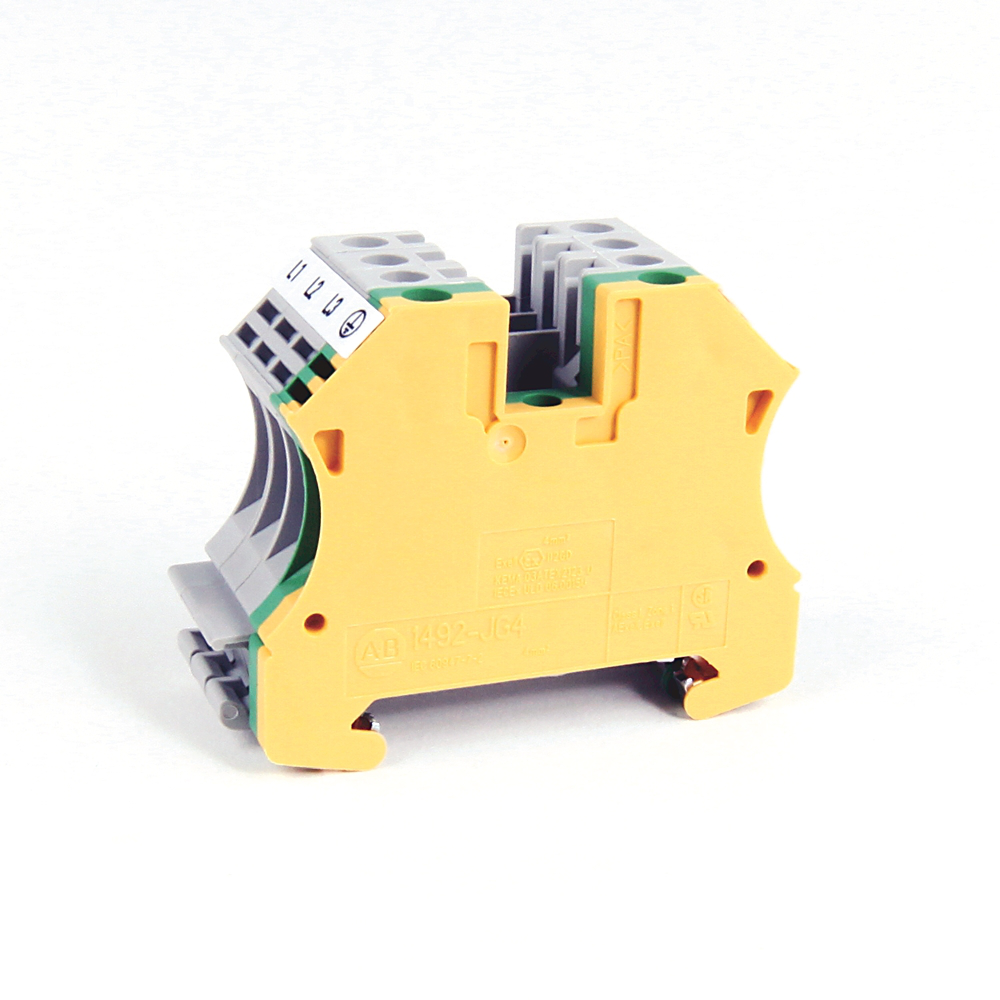

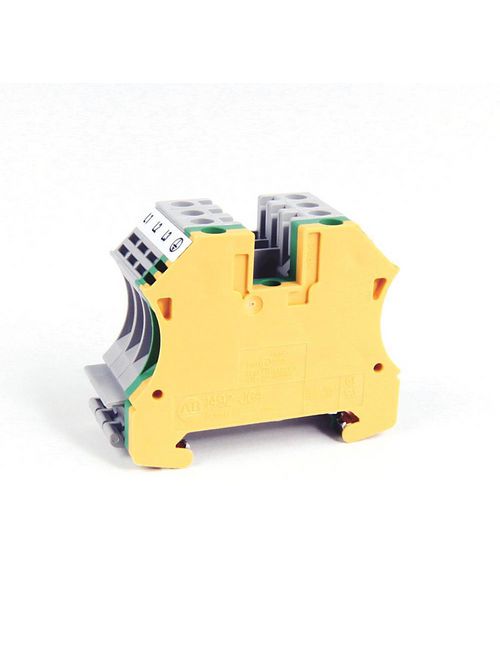

Allen-Bradley 1492-J4 4 mm Feed-Through Terminal Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.50/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-J4
North Coast Part # 151647

Features

  • Finger-safe housing
  • Copper current bar and tin-plated surface
  • Easy installation or removal from both sides of DIN Rail
  • Backed-out screws
  • Counter-sinking of clamping screws
  • Wide range of accessories available
  • Self-locking screw type clamp design
  • Tin-plated terminal and zinc chromate steel screws
  • Compatible with several high visibility snap-in marker cards
  • Four-sided funnel wire guides

Specifications

  • Special Features: Standard Feedthrough

Block Style

  • Base Block Style: Standard Feed-Through Blocks

Base Data

  • Base Block Type: One-Circuit Feed-Through Block

Detail Data

  • Features: Standard Feedthrough
  • Maximum Wire Size & Rating: UL: 22-10 AWG (35A @600V AC/DC) CSA: 22-10 AWG (35A @600V AC/DC) IEC: 4mm² (32A @800V AC/DC) EEx e II: 4mm²/20-12AWG (28A @ 750V AC/DC)
  • Color: Gray (Standard)

Overview

UPC 66207305801
Item Long Description 4 square mm Feed-Through Terminal Block
GTiN 00662073058014
Color Grey
Type Feed-Through
Terminal Type Screw
Mounting Type 35 mm DIN Rail
Wire Size 12 AWG
Temperature Rating -50 to 120 C
Family Brand Name Allen Bradley
Terminal Size 6.1 x 60 x 39.5mm (0.24 x 2.36 x 1.56 in)
Blade Dimensions 60 mm W x 39.5 mm H
Sub Brand 1492
Voltage 600 Volt
Standard CCC,CE,CSA,CUL,KC,MARINE,UL
Amperage 25 Amp
