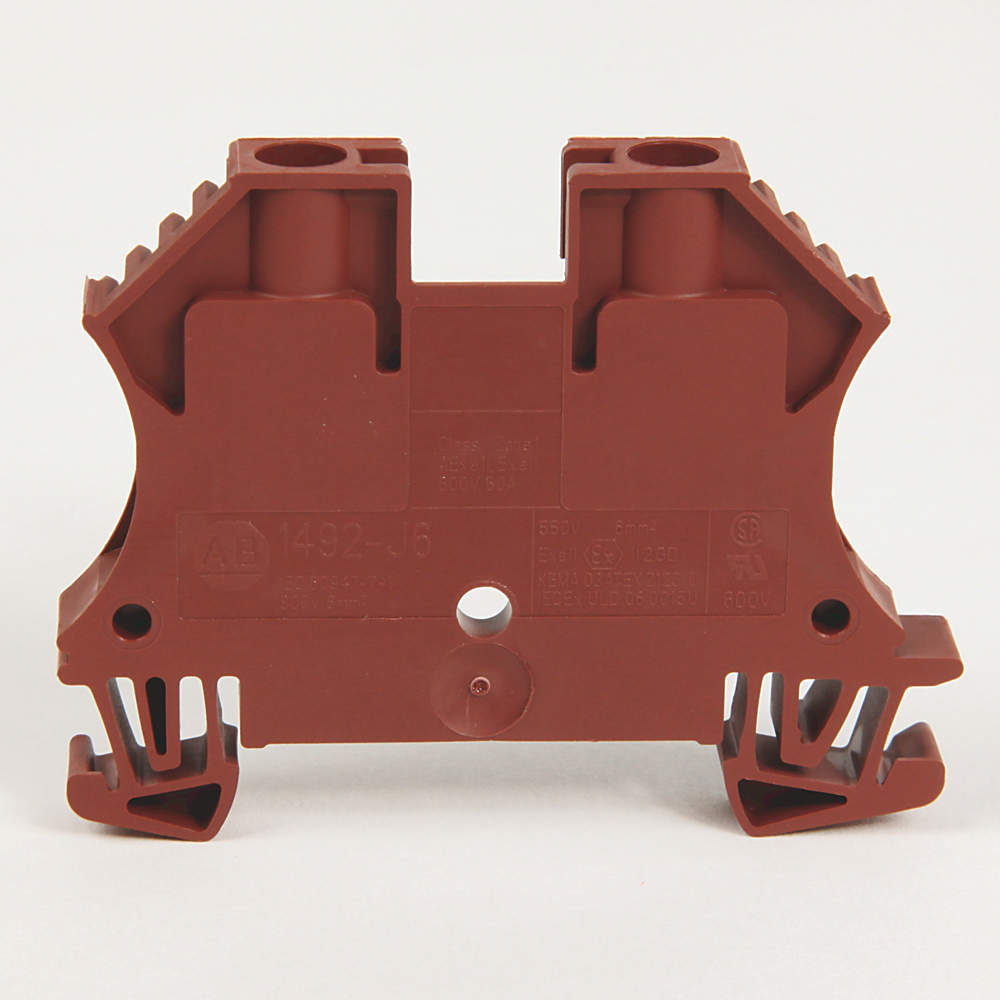

Allen-Bradley 1492-J6 6 mm Feed-Through Terminal Block
$2.11/ea
In Stock | 1738 available at 11 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 1492-J6
North Coast Part # 151675

Features

  • Copper current bar and tin-plated surface
  • Self-locking screw type clamp design
  • Backed-out screws
  • Easy installation or removal from both sides of DIN Rail
  • Finger-safe housing
  • Wide range of accessories available
  • Four-sided funnel wire guides
  • Counter-sinking of clamping screws
  • Tin-plated terminal and zinc chromate steel screws
  • Compatible with several high visibility snap-in marker cards

Specifications

  • Special Features: Standard Feedthrough

Block Style

  • Base Block Style: Standard Feed-Through Blocks

Base Data

  • Base Block Type: One-Circuit Feed-Through Block

Detail Data

  • Features: Standard Feedthrough
  • Maximum Wire Size & Rating: UL: 20-8 AWG (50A @600V AC/DC) CSA: 20-8 AWG (50A @600V AC/DC) IEC: 6mm² (41A @800V AC/DC) EEx e II: 6mm²/20-10 AWG (36A @ 550V AC/DC)
  • Color: Gray (Standard)

Categories

Overview

UPC 66207305810
GTiN 00662073058106
Color Grey
Type Feed-Through
Terminal Type Screw
Mounting Type 35 mm DIN Rail
Wire Size 10 AWG
Temperature Rating -50 to 120 C
Family Brand Name Allen Bradley
Terminal Size 8.1 x 60 x 39.5mm (0.319 x 2.36 x 1.56 in)
Blade Dimensions 60 mm W x 39.5 mm H
Sub Brand 1492
Voltage 550 Volt
Standard CCC,CE,CSA,CUL,KC,MARINE,UL
Amperage 36 Amp
