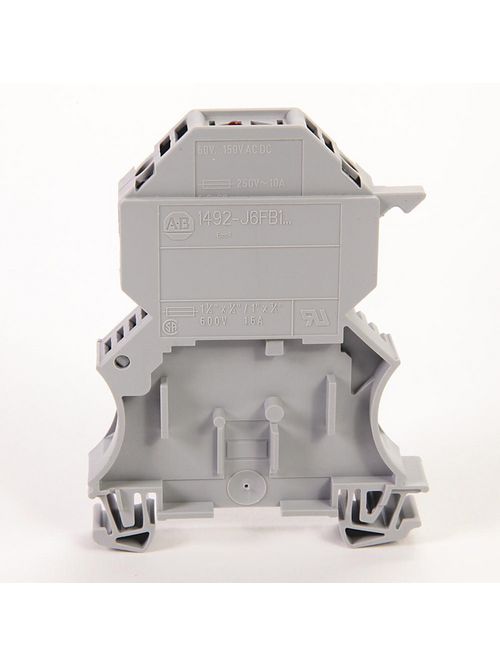

A-B 1492-J6FB1120 Fuse Terminal Blo
Product image thumbnail 0
Product image thumbnail 1
$27.73/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-J6FB1120
North Coast Part # 1014728

Features

  • Self-locking screw type clamp design
  • Four-sided funnel wire guides
  • Wide range of accessories available
  • Finger-safe housing
  • Nickel-plated terminals and stainless steel screws
  • Backed-out screws
  • Tin-plated terminal and zinc chromate steel screws

Specifications

  • Special Features: With or Without Fuse Indication

Block Style

  • Base Block Style: Fuse Blocks

Base Data

  • Base Block Type: One-Circuit Fuse Block (1/4 x 1 1/4" Fuses)

Detail Data

  • Features: With or Without Fuse Indication
  • Maximum Wire Size & Rating: UL: 22-8 AWG (10A @60-150V AC/DC) CSA: 20-8 AWG (16A @60-150V AC/DC) IEC: 6mm² (6.3A @60-150V AC/DC)
  • Color: Gray (Standard)
  • Voltage Rating: 60-150V AC/DC

Overview

UPC 88495194851
GTiN 00884951948518
Color Gray
Voltage 60-150 Volt
Type IEC Screw Fusible Terminal Block
Wire Size 8 AWG
Family Brand Name Allen Bradley
Terminal Size 9.1 x 60 x 66.5mm (0.47 x 2.36 x 2.62 in)
Sub Brand 1492
Standard CCC,CSA,CUL,UL
Amperage 10 Amp
