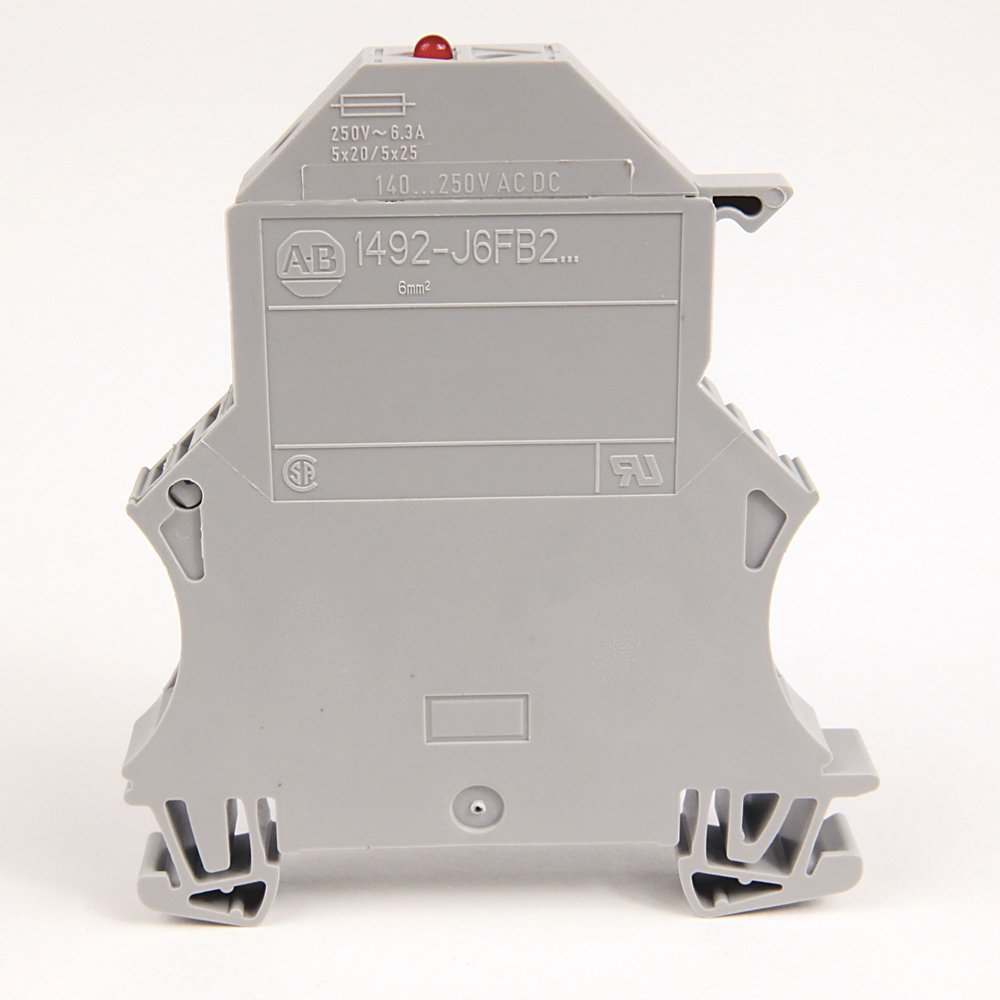

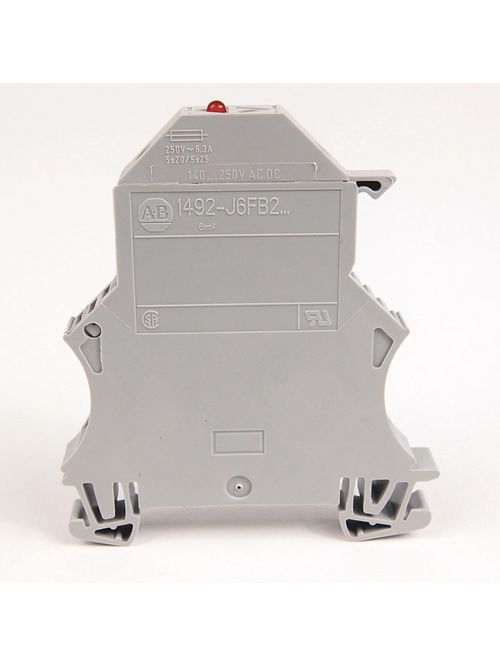

Allen Bradley 1492-J6FB2250 Fused Terminal Block with LED
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-J6FB2250
North Coast Part # 998408


  • Self-locking screw type clamp design
  • Four-sided funnel wire guides
  • Tin-plated terminal and zinc chromate steel screws
  • Nickel-plated terminals and stainless steel screws
  • Backed-out screws
  • Wide range of accessories available
  • Finger-safe housing


  • Special Features: With or Without Fuse Indication

Block Style

  • Base Block Style: Fuse Blocks

Base Data

  • Base Block Type: One-Circuit Fuse Block (5 x 20 mm Fuses, Type J)

Detail Data

  • Features: With or Without Fuse Indication
  • Maximum Wire Size & Rating: UL: 22-8 AWG (10A @100-250V AC/DC) CSA: 20-8 AWG (10A @100-250V AC/DC) IEC: 6mm² (6.3A @100-250V AC/DC)
  • Color: Gray (Standard)
  • Voltage Rating: 100-250V AC/DC


UPC 88495194847
Item Long Description Fuse Terminal Block with LED
GTiN 00884951948471
Color Gray
Voltage 100-250 Volt
Type IEC Screw Fusible Terminal Block
Wire Size 8 AWG
Family Brand Name Allen Bradley
Terminal Size 7.9 x 60 x 61mm (0.31 x 2.36 x 2.41 in)
Sub Brand 1492
Amperage 10 Amp
