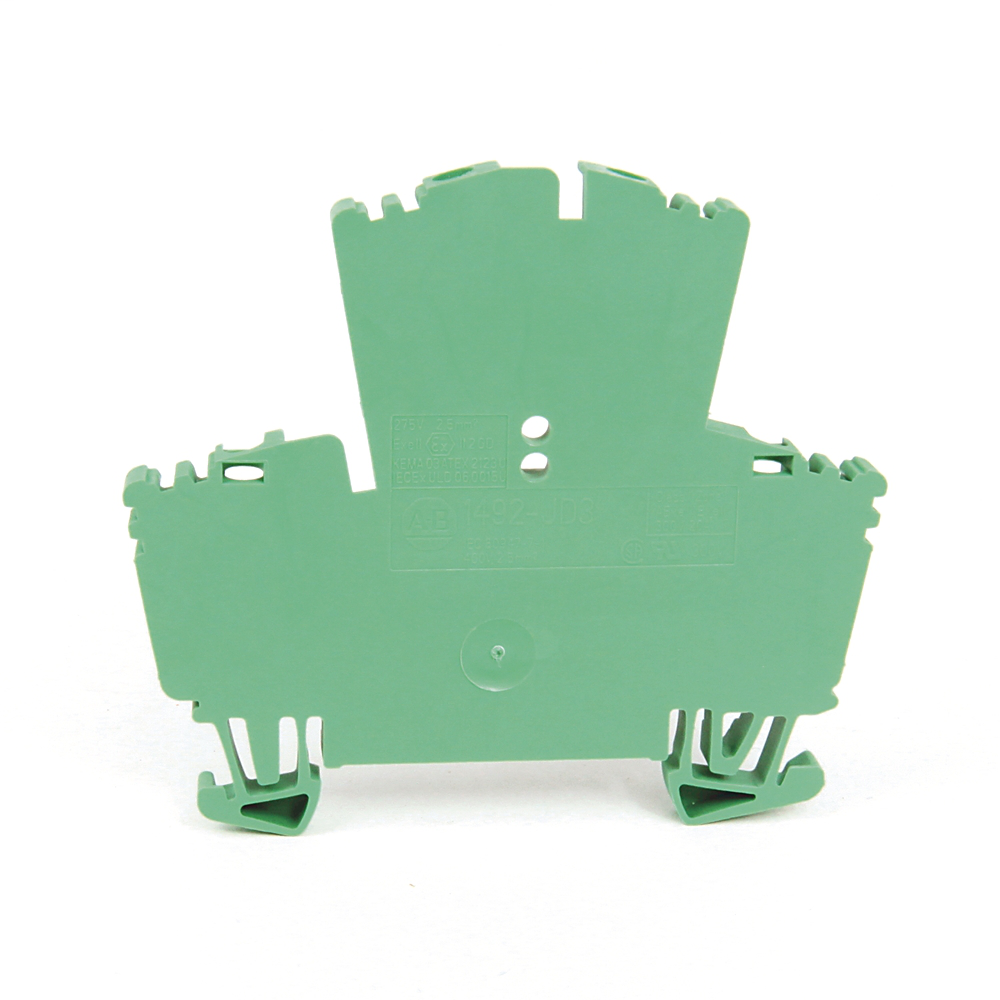

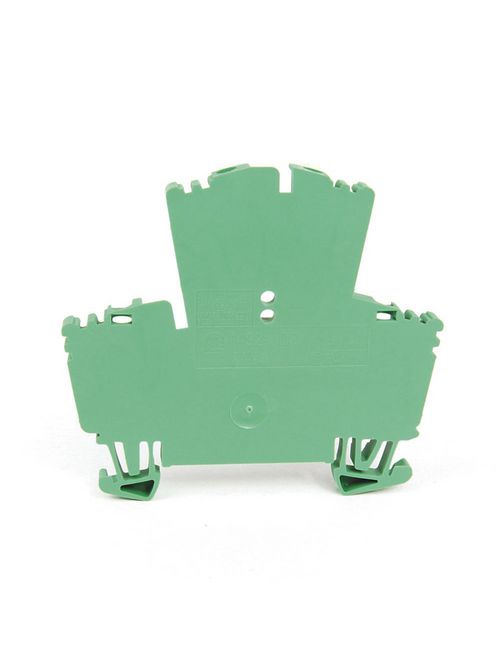

A-B 1492-JD3-W 2.5 mm Double Level
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4.79/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-JD3-W
North Coast Part # 492236

Features

  • Two-level or three-level terminal blocks for high density wiring applications
  • Self-locking screw type clamp design
  • Tin-plated terminal and zinc chromate steel screws
  • Four-sided funnel wire guides
  • Wide range of accessories available including jumpers, partition plates, and test plugs
  • Wide range of accessories available
  • Compatible with several high visibility snap-in marker tags
  • Finger-safe housing
  • Backed-out screws

Specifications

  • Special Features: Standard Feedthrough

Block Style

  • Base Block Style: Multi-Circuit Feed-Through Blocks

Base Data

  • Base Block Type: Two-Circuit Feed-Through Block

Detail Data

  • Features: Standard Feedthrough
  • Maximum Wire Size & Rating: UL: 22-12 AWG (20A @600V AC/DC) CSA: 26-12 AWG (10A @300V AC/DC) IEC: 2.5mm² (24A @400V AC/DC) EEx e II: 2.5mm²/20-14 AWG (21A @ 275V AC/DC)
  • Color: White

Categories

Overview

UPC 66207305876
Item Long Description 2.5 mm Double Level Terminal Block
GTiN 00662073058762
Color White
Type IEC Screw Multi Crkt Term Blk
Wire Size 12 AWG
Family Brand Name Allen Bradley
Terminal Size 5.1 x 69 x 55.5mm (0.20 x 2.72 x 2.19 in)
Sub Brand 1492
Voltage 275 Volt
Standard CCC,CE,CSA,CUL,KC,MARINE,UL
Amperage 10 Amp
