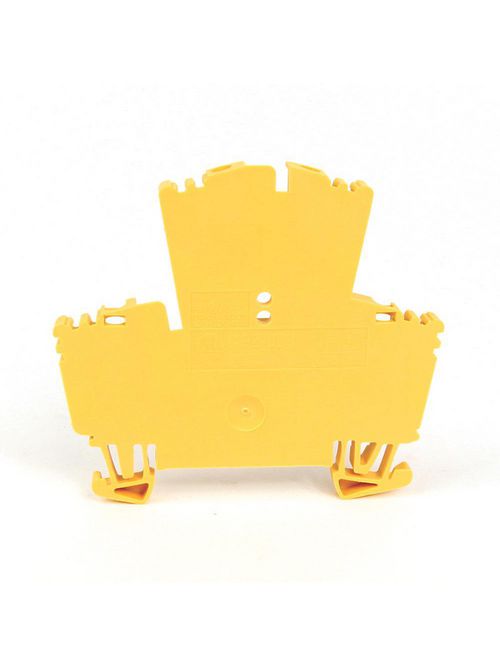

Allen Bradley 1492-JD3-Y 2-Circuit 2.5 mm Feed-Through IEC Terminal Block
Product image thumbnail 0
Product image thumbnail 1
$4.79/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-JD3-Y
North Coast Part # 760226

Features

  • Self-locking screw type clamp design
  • Compatible with several high visibility snap-in marker tags
  • Tin-plated terminal and zinc chromate steel screws
  • Wide range of accessories available including jumpers, partition plates, and test plugs
  • Finger-safe housing
  • Wide range of accessories available
  • Two-level or three-level terminal blocks for high density wiring applications
  • Backed-out screws
  • Four-sided funnel wire guides

Specifications

  • Special Features: Standard Feedthrough

Block Style

  • Base Block Style: Multi-Circuit Feed-Through Blocks

Base Data

  • Base Block Type: Two-Circuit Feed-Through Block

Detail Data

  • Features: Standard Feedthrough
  • Maximum Wire Size & Rating: UL: 22-12 AWG (20A @600V AC/DC) CSA: 26-12 AWG (10A @300V AC/DC) IEC: 2.5mm² (24A @400V AC/DC) EEx e II: 2.5mm²/20-14 AWG (21A @ 275V AC/DC)
  • Color: Yellow

Overview

UPC 66207305873
GTiN 00662073058731
Color Yellow
Type Feed-Through, Multi Circuit
Wire Size 24-12 AWG
Connection Type Screw Terminal
Family Brand Name Allen Bradley
Terminal Size 5.1 x 69 x 55.5mm (0.20 x 2.72 x 2.19 in)
Blade Dimensions 5.1 x 69 x 55.5 mm
Sub Brand 1492
Voltage 275 Volt
Standard C-TICK,CCC,CE,CSA,CUL,MARINE,UL
Amperage 10 Amp
