A-B 1492-JD3FB120 Double Level Fuse
Product image thumbnail 0
Product image thumbnail 1
$27.33/ea
In Stock | 68 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 1492-JD3FB120
North Coast Part # 1501157

Specifications

  • Special Features: Hinged-arm fuse circuit

Block Style

  • Base Block Style: Fuse Blocks

Base Data

  • Base Block Type: Two-Level Block

Detail Data

  • Features: Hinged-arm fuse circuit
  • Maximum Wire Size & Rating: Fuse Circuit: UL: 22-12 AWG (10A @300V AC/DC) CSA: 26-12 AWG (10A/250V @300V AC/DC) IEC: 4.0mm² (6.3A @500V AC/DC) Feed-through circuit: UL: 22-12 AWG (20A @300V AC/DC) CSA: 26-12 AWG (25A @300V AC/DC) IEC: 4.0mm² (6.3A @500V AC/DC)
  • Color: Gray (Standard)
  • Voltage Rating: 60-150V AC/DC

Overview

GTiN 00887172417252
Color Gray
Voltage 60-150 Volt
Type Double Level
Wire Size 22-12 AWG
Connection Type Screw Terminal
Temperature Rating -58 to 248 F
Family Brand Name Allen Bradley

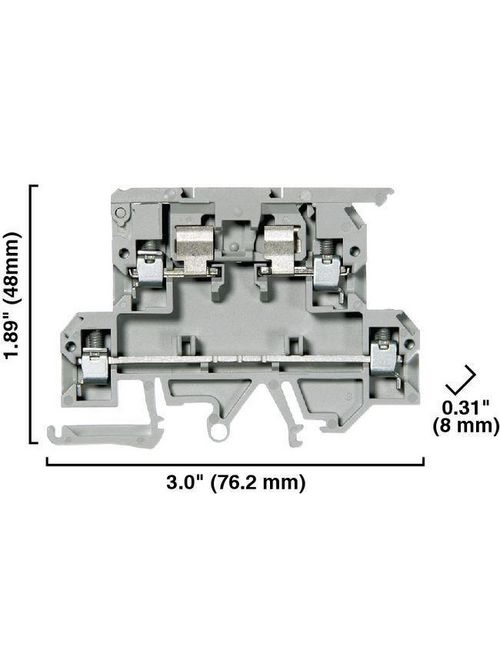

Blade Dimensions 1.89 in H x 3 in W
Torque Rating 0.65 N-m
Product UPC 88717241725
