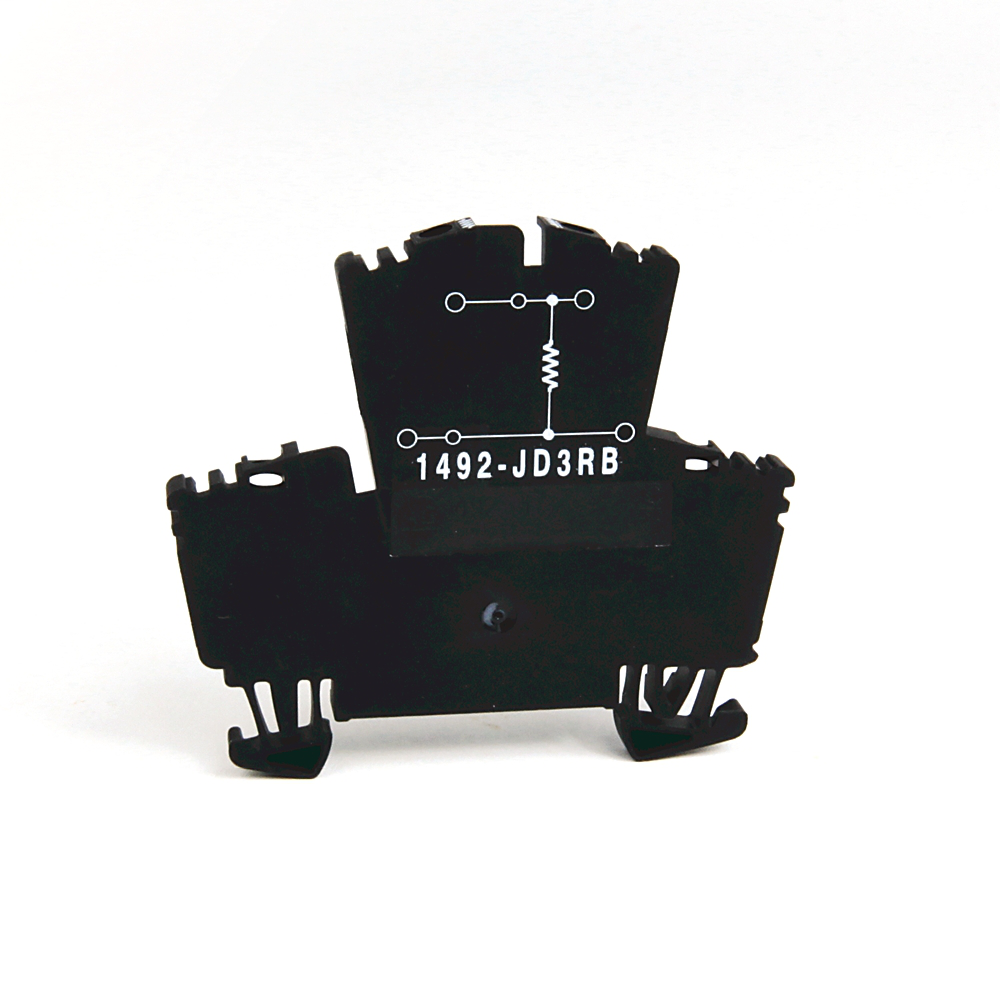

A-B 1492-JD3RB391 1492 IEC Screw Te
$10.07/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-JD3RB391
North Coast Part # 1161690

Specifications

Block Style

  • Base Block Style: Internal Component Blocks

Base Data

  • Base Block Type: Two-Circuit Feed-Through Block

Detail Data

  • Features: Two level block with a selectable resistor value between the 2 levels
  • Maximum Wire Size & Rating: UL: 22-12 AWG (20A Busbar @600V AC/DC) CSA: 26-12 AWG (10A Busbar @300V AC/DC) IEC: 2.5mm² @152V AC/DC
  • Color: Gray (Standard)
  • Resistor Value: 390 Ohm Resistance

Overview

UPC 78118014191
GTiN 00781180141911
Color Gray
Family Brand Name Allen Bradley
Type 2-Circuit, Feed-Through, Metal Oxide Film Resistor
Material Polyamide 6.6
Mounting Type DIN Rail
Wire Size 12 AWG
Connection Type Screw
Temperature Rating -50 to 120 C
Blade Dimensions 2.19 in L x 0.2 in W x 2.72 in H
Torque Rating 4.4 - 8.8 lb/in
