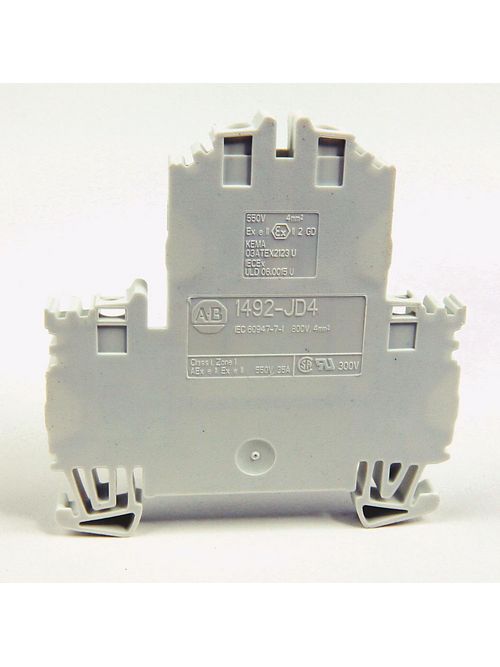

Allen-Bradley 1492-JD4 4 mm Double Level Terminal Block
Product image thumbnail 0
Product image thumbnail 1
$5.95/ea
In Stock | 228 available at 4 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-JD4
North Coast Part # 333873

Features

  • Tin-plated terminal and zinc chromate steel screws
  • Wide range of accessories available
  • Wide range of accessories available including jumpers, partition plates, and test plugs
  • Self-locking screw type clamp design
  • Four-sided funnel wire guides
  • Finger-safe housing
  • Backed-out screws
  • Compatible with several high visibility snap-in marker tags
  • Two-level or three-level terminal blocks for high density wiring applications

Specifications

  • Special Features: Standard Feedthrough

Block Style

  • Base Block Style: Multi-Circuit Feed-Through Blocks

Base Data

  • Base Block Type: Two-Circuit Feed-Through Block

Detail Data

  • Features: Standard Feedthrough
  • Maximum Wire Size & Rating: UL: 26-10 AWG (35A @600V AC/DC) CSA: 26-10 AWG (30A @300V AC/DC) IEC:4mm² (32A @800V AC/DC)
  • Color: Gray (Standard)

Overview

UPC 66207473432
GTiN 00662074734320
Color Grey
Type Double Level
Terminal Type Screw
Mounting Type 35 mm DIN Rail
Wire Size 12 AWG
Temperature Rating -50 to 120 C
Family Brand Name Allen Bradley
Terminal Size 6.1 x 60.7 x 57mm (0.24 x 2.39 x 2.24 in)
Blade Dimensions 60.7 mm W x 57 mm H
Sub Brand 1492
Voltage 300 Volt
Standard CCC,CE,CSA,CUL,KC,UL
Amperage 28 Amp
