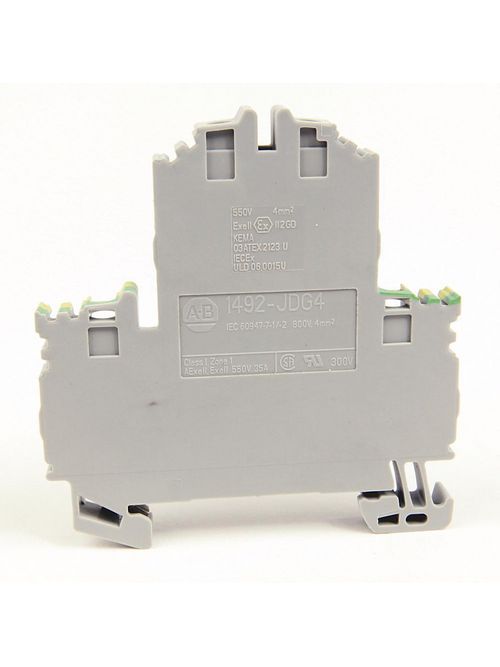

Allen Bradley 1492-JDG4 Grounding Terminal Block
Product image thumbnail 0
Product image thumbnail 1
$8.47/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-JDG4
North Coast Part # 1167659

Features

  • Four-sided funnel wire guides
  • Finger-safe housing
  • Self-locking screw type clamp design
  • Backed-out screws
  • Tin-plated terminal and zinc chromate steel screws
  • Wide range of accessories available
  • Self-locking screw-type clamp design

Specifications

  • Special Features: Standard Feedthrough

Block Style

  • Base Block Style: Grounding Blocks

Base Data

  • Base Block Type: Two-Circuit Feed-Through Ground Block

Detail Data

  • Features: Standard Feedthrough
  • Maximum Wire Size & Rating: UL: 22-10 AWG (35A @600V AC/DC) CSA: 22-10 AWG (35A @600V AC/DC) IEC: 4mm² (32A @800V AC/DC) EEx e II: 4mm²/20-12AWG (28A @ 750V AC/DC)
  • Color: Gray (Standard)

Overview

UPC 66207473441
GTiN 00662074734412
Color Standard Gray
Type Grounding
Wire Size UR-26-10 AWG, CSA-26-10 AWG, IEC-2.5 mm, ATEX-20-14 AWG
Connection Type Screw Terminal
Family Brand Name Allen Bradley
Terminal Size 6.1 x 60 x 39.5mm (0.24 x 2.36 x 1.56 in)
Blade Dimensions 6.1 x 60 x 39.5 mm
Sub Brand 1492
Voltage 300 Volt
Standard C-TICK,CCC,CE,CSA,CUL,KC,UL
Amperage 28 Amp
