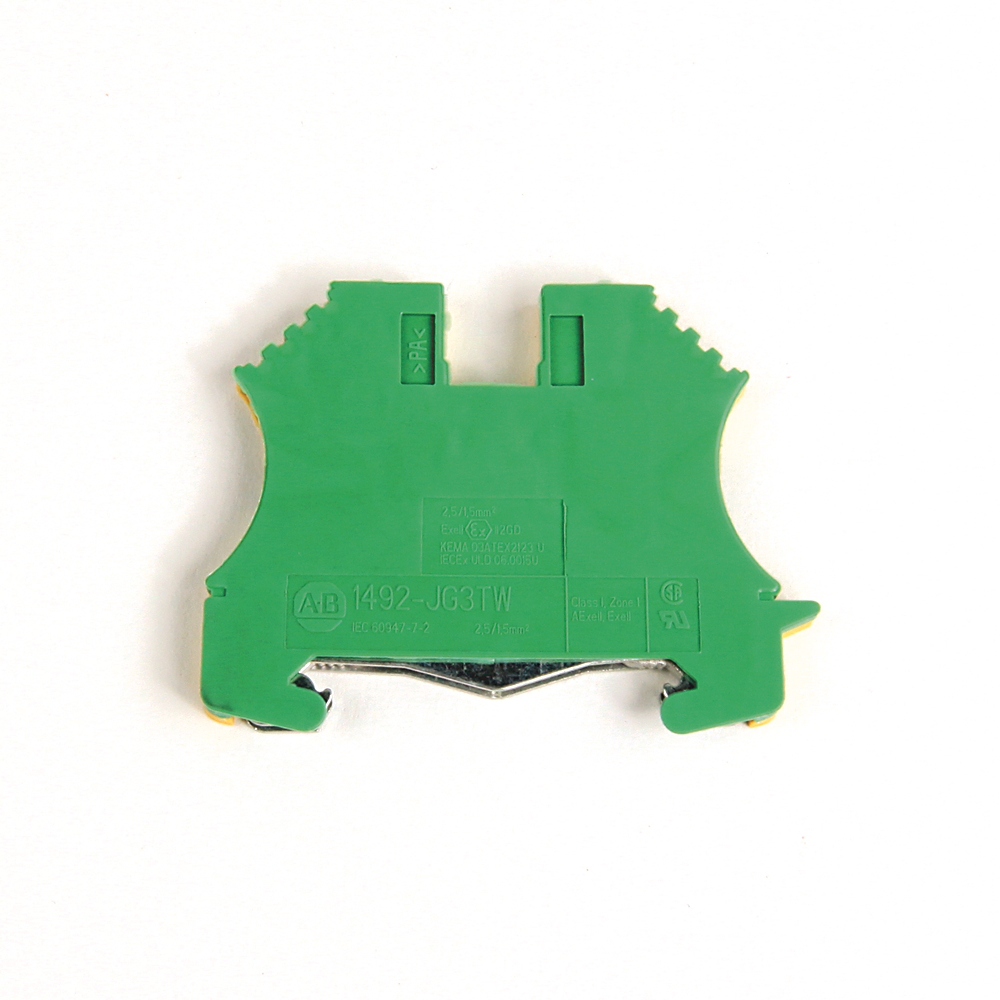

Allen-Bradley 1492-JG3TW IEC 1 Circuit 3 Connection Points Feed-Through Ground Block
$8.25/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 1492-JG3TW
North Coast Part # 754255

Features

  • Wide range of accessories available
  • Backed-out screws
  • Self-locking screw-type clamp design
  • Four-sided funnel wire guides
  • Tin-plated terminal and zinc chromate steel screws
  • Finger-safe housing
  • Self-locking screw type clamp design

Specifications

  • Special Features: 3 Connection points, 2 on one side

Block Style

  • Base Block Style: Grounding Blocks

Base Data

  • Base Block Type: One-Circuit Feed-Through Ground Block

Detail Data

  • Features: 3 Connection points, 2 on one side
  • Maximum Wire Size & Rating: Single Side: UL & CSA: 22-12 AWG IEC: 2.5mm² EEx e II: 2.5mm²/20-14 AWG Twin Side: UL & CSA: 26-12 AWG IEC: 1.5mm² EEx e II: 1.5mm²/20-16 AWG
  • Color: Green / Yellow Stripe (Standard)

Categories

Overview

UPC 66207305899
GTiN 00662073058991
Color Green,Yellow
Type IEC Screw Grounding Term Blk
Wire Size 12 AWG
Family Brand Name Allen Bradley
Terminal Size 5.1 x 60 x 39.5mm (0.20 x 2.36 x 1.56 in)
Sub Brand 1492
Standard CCC,CE,CSA,KC,MARINE,UL
