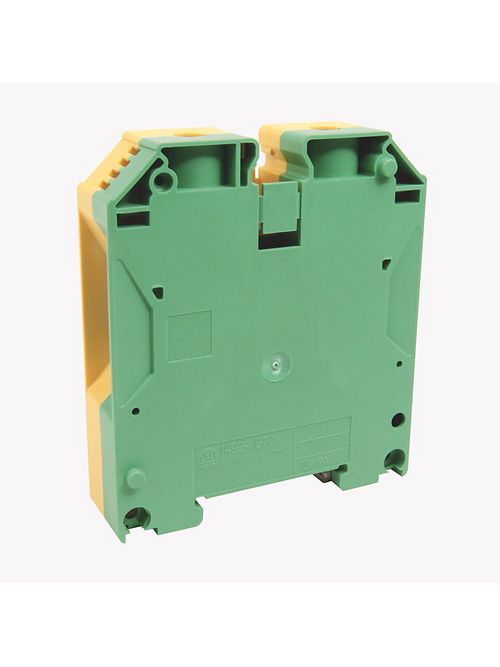

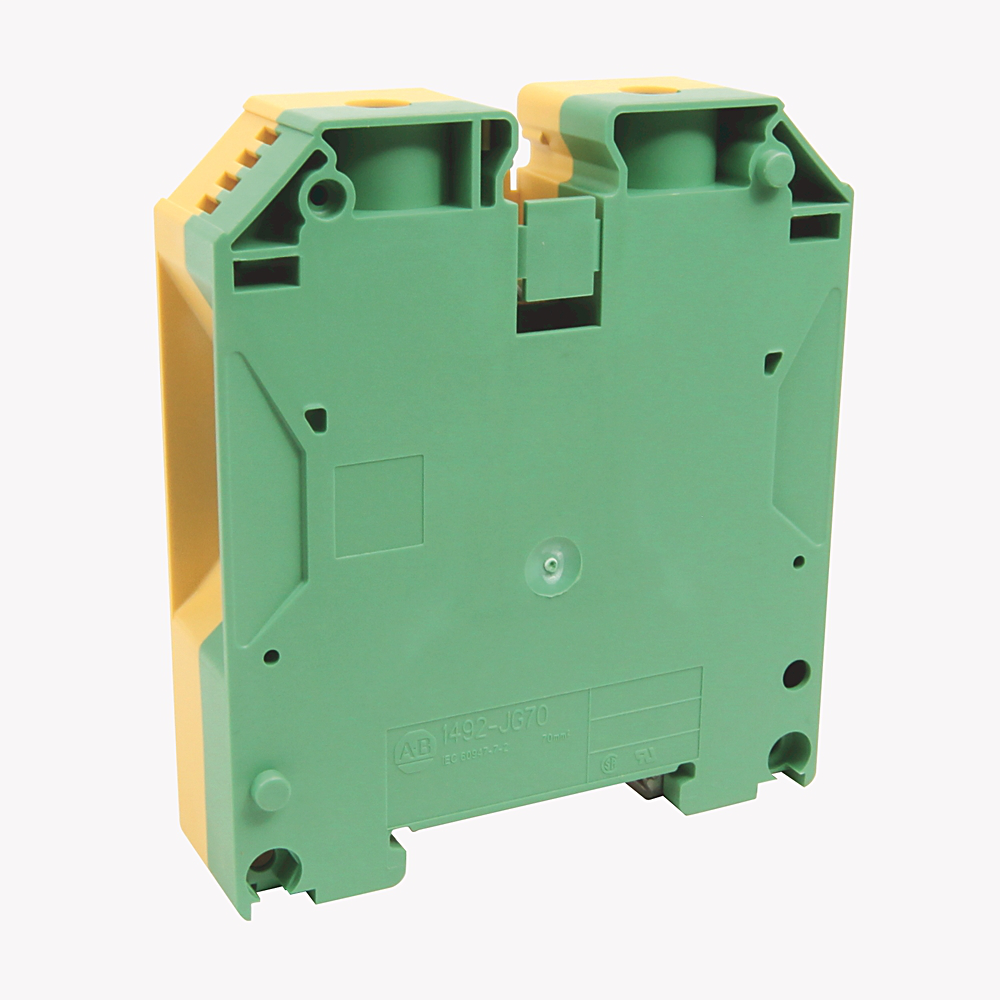

Allen-Bradley 1492-JG70 IEC 1 Circuit 70 mm Feed-Through Ground Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$53.37/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-JG70
North Coast Part # 492830

Features

  • Self-locking screw-type clamp design
  • Four-sided funnel wire guides
  • Backed-out screws
  • Tin-plated terminal and zinc chromate steel screws
  • Finger-safe housing
  • Wide range of accessories available
  • Self-locking screw type clamp design

Specifications

  • Special Features: Standard Feedthrough

Block Style

  • Base Block Style: Grounding Blocks

Base Data

  • Base Block Type: One-Circuit Feed-Through Ground Block

Detail Data

  • Features: Standard Feedthrough
  • Maximum Wire Size & Rating: UL: 6-2/0 AWG CSA: 6-2/0 AWG IEC: 70mm² EEx e II: 70mm²/8-2/0 AWG
  • Color: Green / Yellow Stripe (Standard)

Overview

UPC 66207305850
Item Long Description IEC 1-Ckt Feed-Through Grd Blk 70mm
GTiN 00662073058502
Color Green/Yellow
Type 1-Circuit, Feed-Through, Grounding
Wire Size 00 AWG
Family Brand Name Allen Bradley
Terminal Size 3.1 in L x 2.95 in W x 0.807 in H
Sub Brand 1492
Conductor Size 6-2/0 AWG UR and CSA, 70 mm IEC, 8-2/0 AWG ATEX
Connection Type Screw Terminal
Temperature Rating -50 to 120 C
Number of Poles 1 Pole
Torque Rating 87 in-lb
Standard CCC,CE,CSA,CUL,KC,UL
