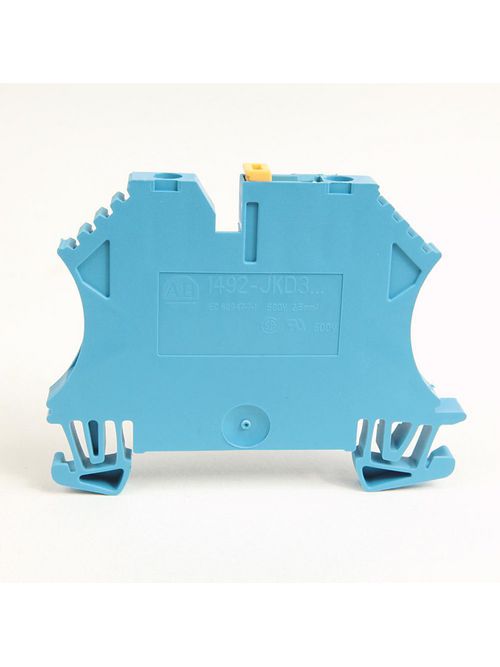

Allen-Bradley 1492-JKD3TP 25 mm Knife Disconnect Terminal Block
Product image thumbnail 0
Product image thumbnail 1
$6.30/ea
In Stock | 4 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-JKD3TP
North Coast Part # 218910

Features

  • Finger-safe housing
  • Wide range of accessories available
  • Four-sided funnel wire guides
  • Self-locking screw type clamp design
  • Tin-plated terminal and zinc chromate steel screws
  • Backed-out screws

Specifications

  • Special Features: With Test Plug Socket

Block Style

  • Base Block Style: Isolation Blocks

Base Data

  • Base Block Type: Knife Disconnect Feed-Through

Detail Data

  • Features: With Test Plug Socket
  • Maximum Wire Size & Rating: UL: 22-12 AWG (10A @300V AC/DC) CSA: 22-12 AWG (10A @300V AC/DC) IEC: 2.5mm² (24A @500V AC/DC)
  • Color: Gray (Standard)

Overview

UPC 66207305852
GTiN 00662073058526
Color Standard Gray
Type Grounding , Knife Disconnect
Wire Size UR-22-12 AWG, CSA-22-12 AWG, IEC-2.5 mm
Connection Type Screw Terminal
Family Brand Name Allen Bradley
Terminal Size 5.1 x 60 x 47mm (0.20 x 2.36 x 1.88 in)
Blade Dimensions 5.1 x 60 x 47 mm
Sub Brand 1492
Voltage 300 Volt
Standard CCC,CE,CSA,KC,UL
Amperage 10 Amp
